Channel Integration

Graphlogic.ai Chat Bot Platform can be integrated with various omnichannel software where chatbot operates as virtual operator

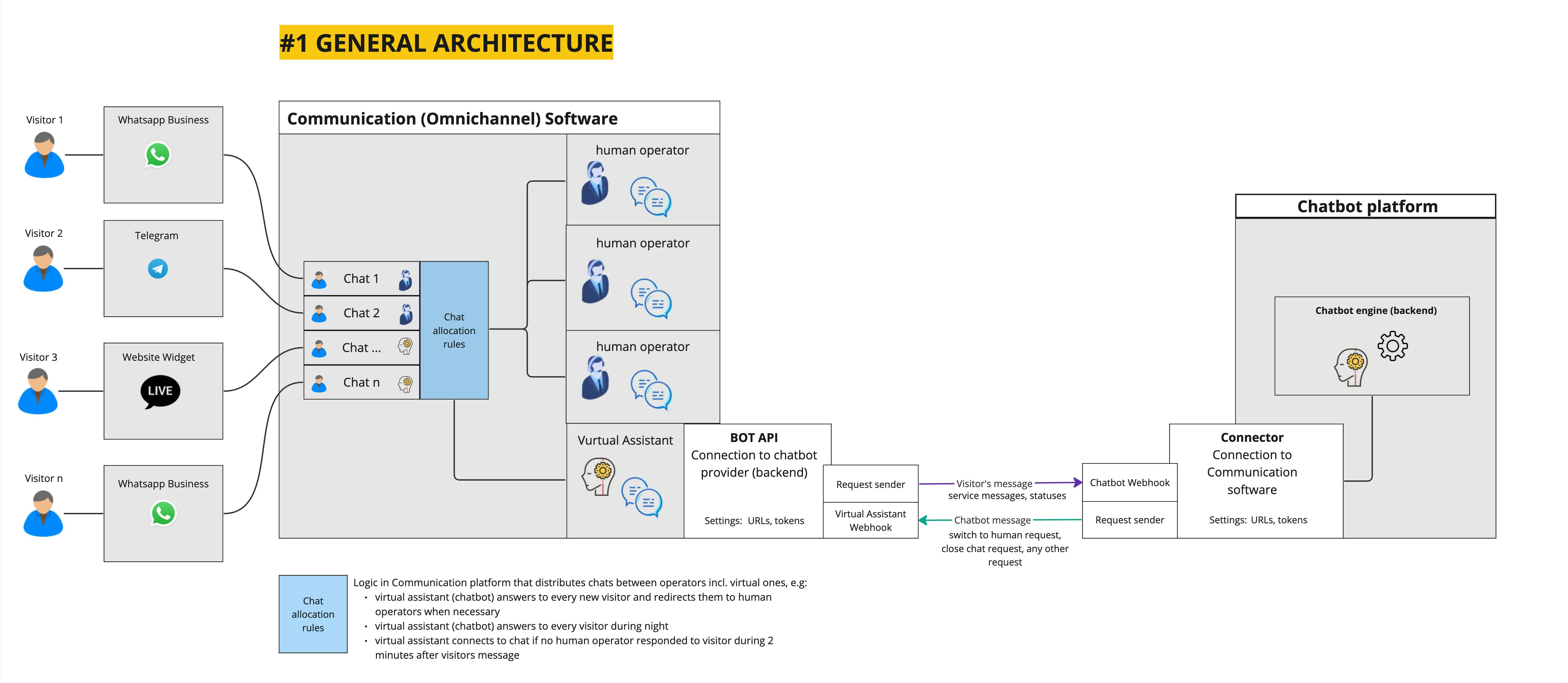

General Architecture

⁠

OMNICHANNEL INTEGRATION CASES - Frame 1.jpg

⁠

Terms

Chatbot platform - Graphlogic Chatbot platform

Communication software - Software where human operators serves Visitors’ requests from various channels (messengers, widgets, social networks)

Visitor - a user\customer who sent message to one of end channels connected to Communication software

Connector - channel-specific API in Chatbot platform

Chatbot platform has versatile public channel-agnostic connector -

Chat API⁠

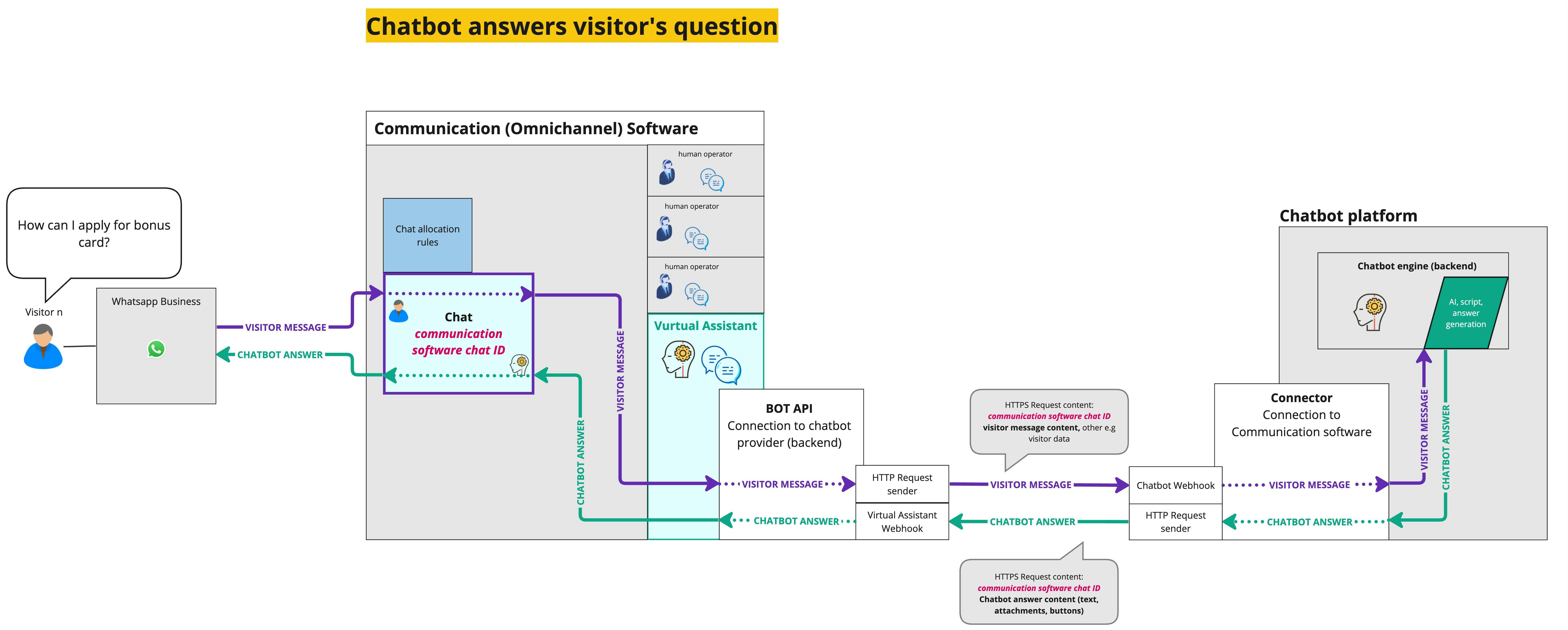

Messaging between Visitor and Chatbot

Incoming communication

⁠

OMNICHANNEL INTEGRATION CASES - Frame 2 (1).jpg

⁠

Terms

Chat ID - an identifier of chat with visitor inside Communication software , name can be different, specified by every Communication software

Virtual Assistant - feature in Communication software that allows chatbots to answer visitor’s messages. Named in opposite to Human operator

Bot API - an API in Communication software that allows external chatbots to work as Virtual Assistant

Virtual Assistant Webhook - a webhook in Communication software Bot API that receives messages from Chatbot

Chatbot Webhook - an API webhook in Chatbot platform (Connector) that accepts HTTP requests that need to be processed by the chatbot

Requirements and responsibilities

Chat ID (exact key name can be different) is a “primary key” in HTTP requests:

Communication software generates a unique identifier for a chat with every Visitor and includes this Chat ID to HTTP request to Chatbot Webhook.

Chatbot includes the same Chat ID into the HTTP request with its answer to the Visitor

Communication software accepts HTTP requests from the Chatbot to Virtual Assistant Webhook and processes them in the specified Chat ID

Async communication:

Chatbot sends messages (requests to Virtual Assistant Webhook) in HTTP requests (not in responses to HTTPS requests)

If Chatbot knows Chat ID it can send messages to Virtual Assistant Webhook anytime, even if the visitor didn't write anything

But it's up to Communication software how to deliver these messages to the Visitor

Chatbot can send several messages (HTTP Requests) to same Visitor\ Chat ID in a row

Avoiding Broadcasting requests to Chatbot

Communication Software must send HTTP requests to Chatbot Webhook with events (e.g visitor messages, statuses) only in those chats (Chat ID) where the Chatbot (Virtual Assistant) is already assigned to or must be assigned

Operator ID in case of broadcasting - sometimes Communication Software sends all events to Chatbot Webhook even those that belongs to chat with Humans operators if this situation can’t be avoided then

All HTTP Requests from Communication Platform to Chatbot Webhook have to include Operator ID of the Operator (Virtual Assistant) under which the Chatbot is operating in the Communication Software, so the Chatbot can filter requests by Operator ID and process only those who belongs to it

It must be possible to find the Operator ID in the Communication Software to set up in Chatbot connector settings

A risk of exceeding Chatbot Webhook limits must be accepted and managed - all incoming HTTP requests are counted event if they belong to other Operator ID than assigned to the Chatbot

API Security and limits:

Communication Software and Chatbot can use the same token to sign their HTTP requests, the token can be generated on any side (negotiable)

Chatbot Webhook is secured by token as a part of it unique endpoint url (e.g https://...../chatapi_message/fe5929d87f27fa0d39608322b7b54663/bot_api_webhook).

Chatbot Webhook optionally can check incoming HTTP request headers for token and other info

The token should be static and regenerated only manually when necessary. Auto-renewal of token is not supported by Chatbot Platform

If Communication Software requires token renewal e.g every hour\day the Chatbot Platform can’t maintain this requirement

There’s a limit or RPS that Chatbot Webhook can support for every particular Chatbot, limits can be discussed

Visitor's message processing:

Communication Software forwards messages from any kind of messenger (telegram, WhatsApp etc.) to Chatbot Webhook in the same format

Fields - HTTP request keys and values - must have the same names and the same data format that designed and agreed to particular channel (Communication Software) integration. Example: if the Chatbot must operate Visitors names (e.g include name to a greeting - “Hi Martin!”), the Communication Software must send the Visitor name always in the key e.g username to the Chatbot Webhook independently of how the field named in HTTP requests from messengers to the Communication Software

Chatbot Webhook supports receiving next types of visitors and service messages:

text message

button press - as text = button label

file - as text = URL to the file when visitor sends file

If a visitor sent a file, the Communication Software should download the file on its server and send a direct URL to the file to Chatbot webhook in specific key as designed in integration or as a user text message

message delivery statuses (if required by business case)

It's recommended that Communication Software adds additional known data such as messenger name and visitor data (name, ID in messenger) to optional fields of HTTP request to Chatbot webhook

Chatbot message processing

Chatbot sends its messages in specific format designed and agreed for the particular integration

Chatbot sends next types of messages and evens to chats in HTTP requests to Virtual Assistant Webhook:

text message

button menu options

URL to file

If the business case requires delivering a file to the visitor (instead of link to file) the Communication Software must download the file from the provided URL and deliver it to the visitor

service commands e.g. transfer chat (visitor) to human operator or close the chat

Template execution in case of promotional messages in WhatsApp business or Viber business

Transferring a Chat (Visitor) from a Chatbot to a Human operator

Transferring a Visitor from a Chatbot to a Human operator can be done from the Communication Software itself (if there’s this feature) or by the Chatbot if the Communication Software provides an API webhook that allows it

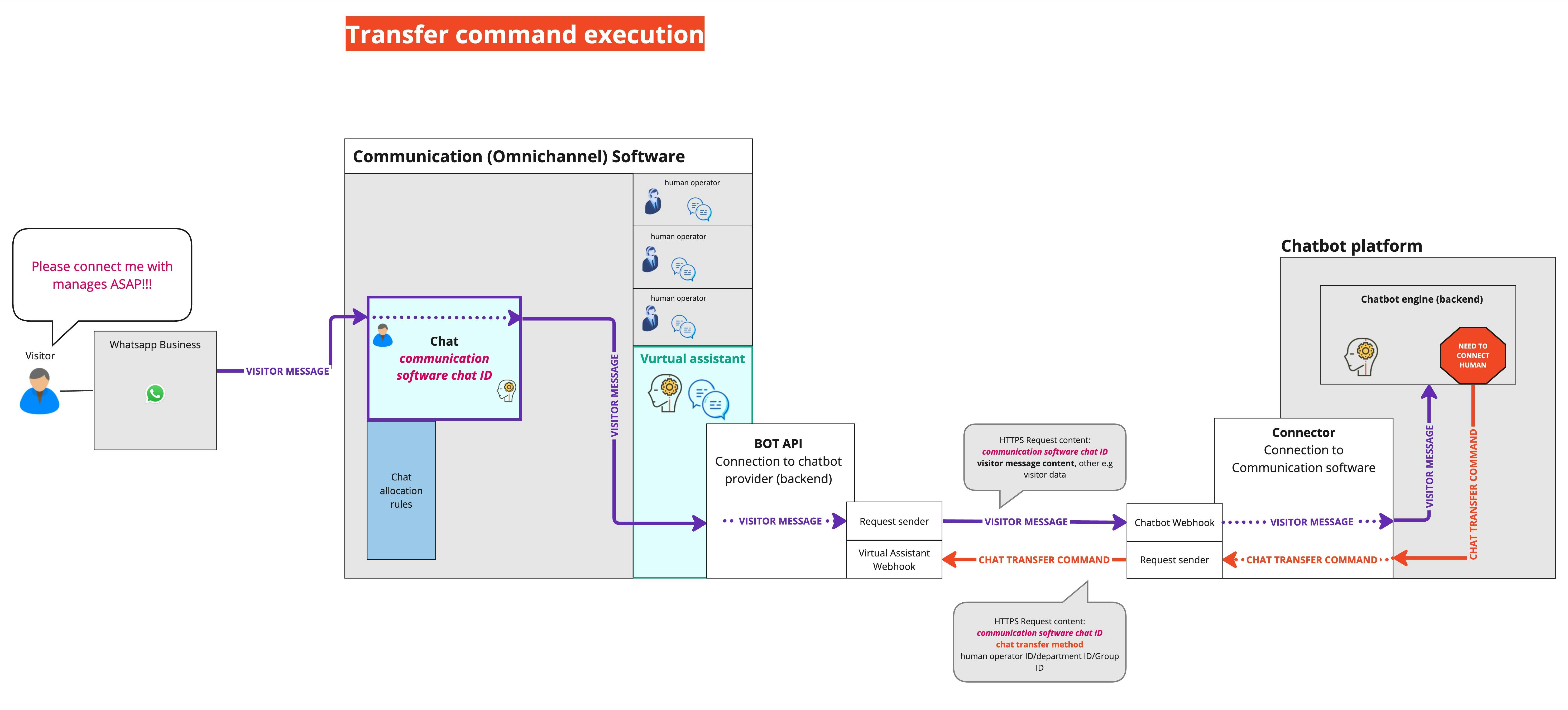

Transferring a Visitor from a Chatbot to a Human operator by Chatbot

⁠

OMNICHANNEL INTEGRATION CASES - Frame 3 (1).jpg

⁠

Requirements and responsibilities

Chatbot can execute Communication Software API method of transferring a chat to human in any time

As a result of transfer command execution, the Communication Software should assign the chat to

any human operator in no specific human operator\department\group was specified in the transfer command (HTTP request) from the Chatbot

specific human operator\department\group if they specified in transfer command (HTTP request) from the Chatbot

The assigned human operator can see all previous messages and other chat history with the Visitor

As a result of transfer command execution, the Communication Software should unassign the Virtual Assistant from the chat

Communication Software should stop sending requests to the Chatbot Webhook with events in chats where the chatbot was unassigned from, otherwise the Chatbot will reply on them

Communication Software or Human operator can assign the chat back to Virtual Assistant (Chatbot) using own custom logic - from this time Communication Software starts sending HTTP requests for the particular chat ID to the Chatbot Webhook again

If required by business case, the Chatbot can send messages to Visitor (chat ID) even if the chat (visitor) is transferred to human operator. It’s up to Communication Software how to handle this HTTP request

Channel analytics research

Check information and architecture above and give comments on every point if the Communication Software satisfies it or not, and provide some additional comments

Provide next information related to Communication Software

Chat ID description

Receiving messages from Chatbot by type (link to API method, request example, screenshot of how message delivered to Visitor)

text message

buttons

file (image, video, custom) url

Can the Communication Software download file via link in chatbot’s request body and right after that deliver it to the Visitor?

Sending Visitor messages to Chatbot by type (link to API request description, request example)

text message

button press

file (image, video, custom)

Can the Communication Software download file from Visitor, send link to it to the chatbot

Provide Communication Software API (requests above) testing with Postman and

webook.site⁠

(or similar tools). Researcher should test API and provide screenshots of results (show requests, responses, screenshots of how message delivered to user)

Imitate chatbot with postman - send “chatbot’s” messages (all types of messages incl “redirect to operator” command) using postman to Communication Software and ensure they are delivered to Visitor

Imitate chatbot webhook with

webhook.site⁠

and ensure visitor’s messages (all types) are delivered there correctly

Provide info of how’s Chatbot Webhook configured on the Communication Software side, describe all options: via UI, via “set webhook” method

Screencast of setting up Communication Software to work with some potential external chatbot, including: creating connection, generating\entering token, setting up chatbot webhook url, creating rules to assign visitors to chatbot
