FAQ

Agent Script

Why can't I open the debug widget? ​
⁠
⁠

The Debug widget toggler is disabled before an
@Agent
⁠
is trained and becomes available after
@Training
⁠
. To open the Debug widget, train your
@Agent
⁠
by clicking the TRAIN button.

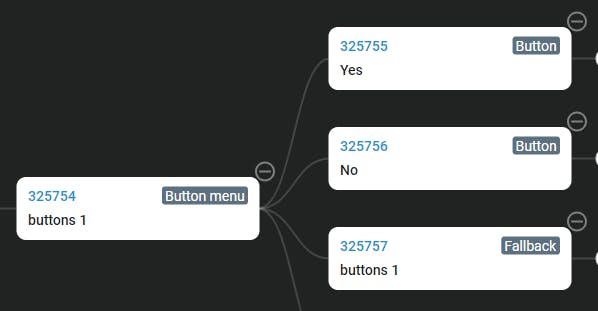

What will happen if a
@Bot User
⁠
writes something in the chat instead of clicking one of the suggested buttons?

This
@Script
⁠
is handled by the
@fallback
⁠
@Subslot
⁠
, which is automatically generated when creating a
@Button Menu
⁠
. ​
⁠
After this
@Subslot
⁠
, you can build any
@Script
⁠
of your choice, for example, ask a
@Bot User
⁠
to select one of the buttons and add a
@Jump
⁠
slot that returns the
@Script
⁠
back to the
@Button Menu
⁠
.

What is a variable and how can I use it?

⁠
@Context Variable
⁠
s are variables stored in the
@Chat
⁠
and available for reading and modification by the system according to the logic embedded in the
@Script
⁠
or
@Platform
⁠
.You can learn about context variables by following this link:
Context Variables
⁠
⁠

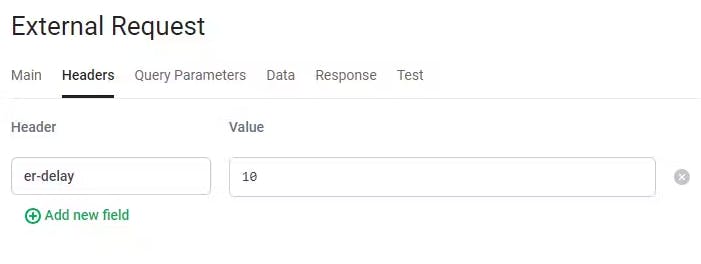

How can I insert a delay of several seconds between two text slots?

To implement a delay between displaying multiple
@Text
⁠
slots, you can insert an
@External Request
⁠
between these
@Text
⁠
slots to any responsive server and specify the er-delay header with the desired value in seconds in the settings of this
@External Request
⁠
. More information on using such headers:
External Request slot (Sending Requests to APIs from script)
⁠
​
⁠
⁠
The request itself is a formality to use the delay option, it can be sent to any service that responds, the response data does not need to be parsed. The main thing is for the server to respond. The total delay time will amount to the response time of the server + the delay in seconds from the er-delay header. If the service does not respond, the platform will wait for the response to the request for 5 minutes.

Is there a way to receive files from a
@Bot User
⁠
through Jivo and then send them to the customer's CRM?

File metadata is stored in the client_message variable and includes a link to the file kept on the Jivo servers. You can read about receiving files from the
@Bot User
⁠
in other omnichannel platforms and messengers in the following articles: section
Omnichannel platforms
⁠
, section
Messengers
⁠
.

Is it possible to set a timer for 3 months? What are the possible risks?

It is possible, there are no restrictions. You can find out in which cases the timer is reset (deleted) here:
Triggering chatbot with a timer | Timer slot
⁠
⁠

Why does the
@External Request
⁠
sent to the channel arrive earlier than the
@Text
⁠
slot, even though they are in the opposite order in the
@Script
⁠
?

The platform executes these slots almost simultaneously, but the
@External Request
⁠
may arrive faster. To fix this, you can add the er-delay header. More details:
External Request slot (Sending Requests to APIs from script)
⁠
⁠

Why does the Agent replaced with a new configuration file is displayed as trained?

It is the untrained Agent model that is being changed, not the
@Script
⁠
in the bot builder. The previous
@Agent
⁠
model is still active in the channel, and to make the new
@Script
⁠
work, it needs to be trained.

Questions about the Platform Syntax

Why do some objects not parse in
@External Request
⁠
?

You need to access the attributes of any object using square brackets: {{ body["foo"]["bar"] }}. More about reserved attributes:
Reserved methods of objects
⁠
⁠

How can I get the current time in Unix format?

{{ now().timestamp() }}

Can I use the now() function to get a result with an offset? For example, now(5) = UTC+5.

No, you can only get the current time in UTC.

Why can't I perform mathematical operations with a variable using the syntax?

If a string can be converted to a specific type (number, boolean, array, etc.), the specific type is preserved, not the string. Mathematical operations can be applied only to numbers.

Why does the '+' at the beginning of a variable (phone number specified in
@client_message
⁠
) get trimmed?

The string is automatically converted to a number and is saved as a number.

How can I concatenate the '+' symbol with a number converted to a string format? I need to save the number in the format '+79999999999'. Concatenating the number with any other symbol works correctly; in the case of '+', the symbol disappears. Is the string automatically converted to a number?

Yes, the string is automatically converted to a number. You can implement this as follows: {{ "+" + (<phone number> | string) }}

How can I quickly process any text through the syntax so that it can be successfully sent via an
@External Request
⁠
as a string object in JSON format?

There is a built-in filter called tojson (more details:
https://jinja.palletsprojects.com/en/3.1.x/templates/#jinja-filters.tojson
⁠
). To remove line breaks, use {{ some | replace('\n', '') }}

How can I determine the position of an element in an array if the value of the element is known?

Instructions can be found at this link:
https://medium.com/opsops/how-to-get-index-of-the-element-in-the-list-in-jinja-c369c2372729
⁠
⁠

How can I add an element to an array?

To add elements to an array, use the + operator.
Example: There is a shopping cart where items are added.
cart = [{
"id": "{{ id }}",
"amount": "{{ amount }}"
}]
To add an element: {{ cart + [{"id": 1, "amount": amount}] }}

How do I concatenate strings longer. than 1000 characters implemented?

This can be done using {{ string_1 }}{{ string_2 }}. The + operator will not work in this case.

Questions about Tariffs and Billing

How can I check the number of remaining unique users in accordance with my subscription plan?

This information is available in the account settings on the
Billing tab
⁠
.

What is a unique
@Bot User
⁠
?

A unique
@Bot User
⁠
as a billing object is each unique
@Bot User
⁠
from the channel with whom the
@Agent
⁠
communicates in a unique
@Agent
⁠
channel. If the same actual user has a dialogue with the same
@Agent
⁠
in another
@Agent
⁠
's channel or with another
@Agent
⁠
in the same
@Company
⁠
, they are considered different unique
@Bot User
⁠
s.

How is the unique
@Bot User
⁠
counter updated?

The subscription counters are updated every day at 02:00 UTC: the traffic counter value (unique
@Bot User
⁠
s) in the billing period is updated based on the received traffic statistics. If a new billing period starts on the current day, the traffic counter in the billing period is reset to zero.

How is the number of unique
@Bot User
⁠
s measured in
@NLU
⁠
@Agent
⁠
s and
@Agent
⁠
s without
@NLU
⁠
?

The number of unique
@Bot User
⁠
s is measured the same way in
@NLU
⁠
@Agent
⁠
s and
@Agent
⁠
s without
@NLU
⁠
: all chats in which there was any activity in the
@Script
⁠
(a message from the
@Bot User
⁠
or a message from the
@Agent
⁠
, a timer triggered, an incoming request, etc.) in the billing period are taken into account.

How is the number of unique
@Bot User
⁠
s measured in the architecture of a bot cascade in a single channel "Broadcasts => Bot mother => Child Bots / Sub-bots"?

A unique
@Bot User
⁠
as a billing object is each unique
@Bot User
⁠
from the channel with whom the
@Agent
⁠
communicates in a unique
@Project Channel
⁠
. If the same actual user has a dialogue with the same
@Agent
⁠
in another
@Agent
⁠
's channel or with another
@Agent
⁠
in the same Company, they are considered different Unique
@Bot User
⁠
s.

How do subscription notifications work?

You can learn about subscription alerts at this link:
Payment alerts
⁠
⁠

How do I purchase additional packages for unique bot users?

At the moment, the purchase of a traffic replenishment package is possible only through technical support: support@actum.cx

Questions about Agent Channels

How can I identify a visitor in a specific channel?

To identify a visitor in a channel, you can use channel variables. Learn more:
Channel context variables
⁠

Where can I view information provided by
@Bot User
⁠
s during communication with
@Agent
⁠
in Telegram?

If the Agent is connected directly to Telegram, you can view the
@Bot User
⁠
s' responses in the following ways:
Export the
chat history
⁠
from the
@Analytics Tab
⁠
;
Export
chat context variables
⁠
from the
@Analytics Tab
⁠
, then you will only see the responses saved in the context variables;
Set up integration, for example, through Integromat, and send the data to your email or Google Sheets.

How can I retrieve the username of a user in Telegram?

If the
@Bot User
⁠
has not hidden their username in the Telegram privacy settings, you can see it in the
@channel_visitor_account
⁠
channel variable.

Why can’t I activate an agent channel?

This can happen when the
@Agent
⁠
is not trained or when a channel with the same token is already registered. Errors can also occur during channel activation:
"Can’t reach channel" — is displayed when the server does not respond to the specified URL. ​
⁠
⁠
"Couldn't register agent webhook" — is displayed when the webhook could not be registered in the remote channel. ​
⁠
⁠
However, the channel will be activated despite these issues.

How can I check if a user is subscribed to a channel/group in Telegram?

You can do this using an external request to the URL `https://api.telegram.org/bot{{ channel_webhook_token }}/getChatMember?chat_id=@``**[CHANNEL USERNAME]**``_id={{ channel_visitor_id }}, where in the Response tab, you parse the variable from the response: {{ body.result.status }}.
Add the Telegram channel or group username to the URL, for which you want to check the subscription, add the external request to the
@Agent
⁠
@Script
⁠
, and use the obtained variable in the subsequent scenario. The interaction algorithm can be as follows:
The
@Bot User
⁠
writes to the Telegram bot in private messages;
The bot checks the
@Bot User
⁠
's subscription status;
Depending on the status, the communication continues according to one of the scenarios.

Questions about Analytics

How can I track how many
@Bot User
⁠
s have gone through the entire
@Script
⁠
, how many of them have left the dialogue, and at what point?

This information can be retrieved using the Slot stats report, which can be exported on the Analytics page. The report shows through which slot and how many times the
@Bot User
⁠
has passed during a specific dialogue session.

In what order are specific variables exported in the chat context report?

The variables are exported in alphabetical order.

Questions about Platform Limits and Loads

What are the RPS limitations for broadcasts / for API, etc.?

The
@Platform
⁠
accepts 20 requests per second, but further sending is distributed over time to smooth out the load and not exceed the API limits of the messenger.

Is there a limit on the number of open chats per
@Company
⁠
?

There are no limits on open chats.
Agent Script
Why can't I open the debug widget? image.png
What will happen if a Bot User writes something in the chat instead of clicking one of the suggested buttons?
What is a variable and how can I use it?
How can I insert a delay of several seconds between two text slots?
Is there a way to receive files from a Bot User through Jivo and then send them to the customer's CRM?
Is it possible to set a timer for 3 months? What are the possible risks?
Why does the External Request sent to the channel arrive earlier than the Text slot, even though they are in the opposite order in the Script?
Why does the Agent replaced with a new configuration file is displayed as trained?
Questions about the Platform Syntax
Why do some objects not parse in External Request?
How can I get the current time in Unix format?
Can I use the now() function to get a result with an offset? For example, now(5) = UTC+5.
Why can't I perform mathematical operations with a variable using the syntax?
Why does the '+' at the beginning of a variable (phone number specified in client_message) get trimmed?
How can I concatenate the '+' symbol with a number converted to a string format? I need to save the number in the format '+79999999999'. Concatenating the number with any other symbol works correctly; in the case of '+', the symbol disappears. Is the string automatically converted to a number?
How can I quickly process any text through the syntax so that it can be successfully sent via an External Request as a string object in JSON format?
How can I determine the position of an element in an array if the value of the element is known?
How can I add an element to an array?
How do I concatenate strings longer. than 1000 characters implemented?
Questions about Tariffs and Billing
How can I check the number of remaining unique users in accordance with my subscription plan?
What is a unique Bot User?
How is the unique Bot User counter updated?
How is the number of unique Bot Users measured in NLU Agents and Agents without NLU?
How is the number of unique Bot Users measured in the architecture of a bot cascade in a single channel "Broadcasts => Bot mother => Child Bots / Sub-bots"?
How do subscription notifications work?
How do I purchase additional packages for unique bot users?
Questions about Agent Channels
How can I identify a visitor in a specific channel?
Where can I view information provided by Bot Users during communication with Agent in Telegram?
How can I retrieve the username of a user in Telegram?
Why can’t I activate an agent channel?
How can I check if a user is subscribed to a channel/group in Telegram?
Questions about Analytics
How can I track how many Bot Users have gone through the entire Script, how many of them have left the dialogue, and at what point?
In what order are specific variables exported in the chat context report?
Questions about Platform Limits and Loads
What are the RPS limitations for broadcasts / for API, etc.?
Is there a limit on the number of open chats per Company?
Want to print your doc?
This is not the way.
Try clicking the ⋯ next to your doc name or using a keyboard shortcut (
CtrlP
) instead.
