How to create and configure Slots

Creating and Saving Context Variables | Memory slot

Purpose and general information

⁠

@Memory⁠

is a

@Slot⁠

that allows you to write data to

@User Context Variables⁠

, as well as create new

@User Context Variables⁠

by writing a value to a previously non-existent variable.

Changing

@System Context Variables⁠

in the

@Memory⁠

@Slot⁠

is prohibited, except for the

@client_message⁠

⁠

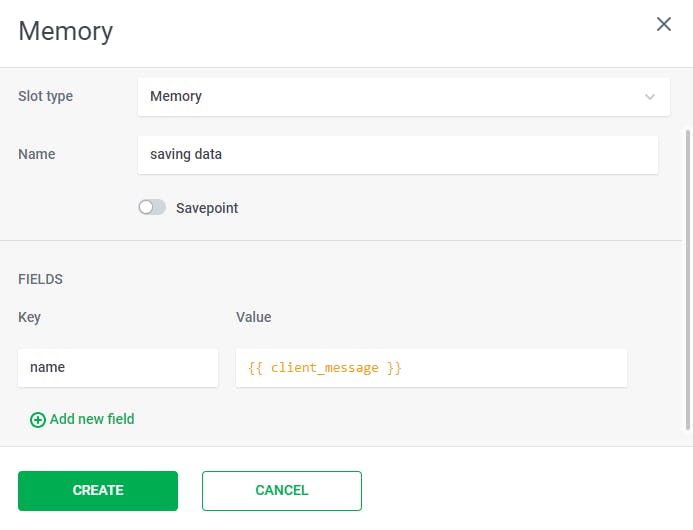

Slot creation and settings

Slot attributes

⁠

Name ー the name of the

@Slot⁠

, which will be displayed in the

@Script Tree⁠

. The maximum length of a field value is 40 characters.

FIELDS ー an array of Key - Value pairs.

Important: 1. There must be at least one Key - Value pair 2. The maximum number of Key - Value pairs is not limited

Key ー variable name specified in accordance with the naming requirements for

@User Context Variables⁠

. If you specify a variable incorrectly, a Script Validation error will occur.

Value ー value that will be written to the variable:

exact value (number, string, boolean)

result of the operation

value of another variable

Trimming spaces: by clicking the CREATE button (when creating a

@Slot⁠

) or SAVE (when editing a

@Slot⁠

), spaces and line breaks at the beginning and end of the Value field are trimmed.

Important: when specifying KEY, pay attention to the case dependence of the variable name (var and Var are different variables). Also, pay attention to the
requirements for context variable names⁠
.

Using Syntax in the Slot

@Memory⁠

@Slot⁠

, it is possible to use

@Expression⁠

and

@Expression with Control Structure⁠

in the Value field. Read more:

Syntax⁠

Slot operation

Important: If you try to write to VALUE an operation that does not comply with the rules described in this article, an error will occur.
@System Context Variables⁠
error will take the value Failed to process the data!

In order to write a value to a

@Context Variable⁠

using the

@Memory⁠

@Slot⁠

, you must specify the name of the variable in the KEY field, and the desired value in the VALUE field.

Important: All variables are written only as Boolean, text, numeric or “Date” types. A number written in single quotes ('45') is a string and cannot be used in arithmetic operations.
