Omnichannel platforms

Edna Pulse

Edna Pulse is the official provider of WhatsApp Business. Using the “Edna Pulse” connector, you can create a

@Bot⁠

in WhatsApp Business Account (WABA).

Connection

1. Bot configuration on Edna Pulse side

First of all, you need to configure the Edna Pulse.

Edna Pulse⁠

. An account is created through Edna Pulse technical support.

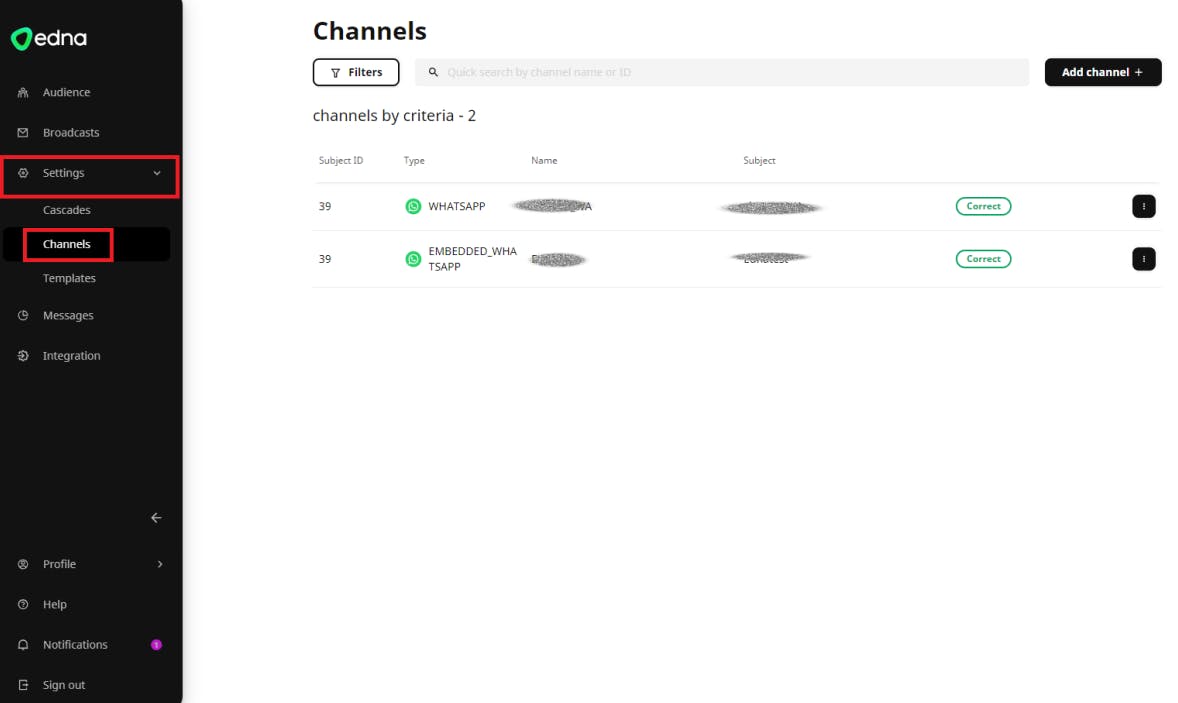

Go to Settings → Channels.

⁠

The section must have at least one existing channel. Otherwise, contact Edna Pulse technical support to create it.

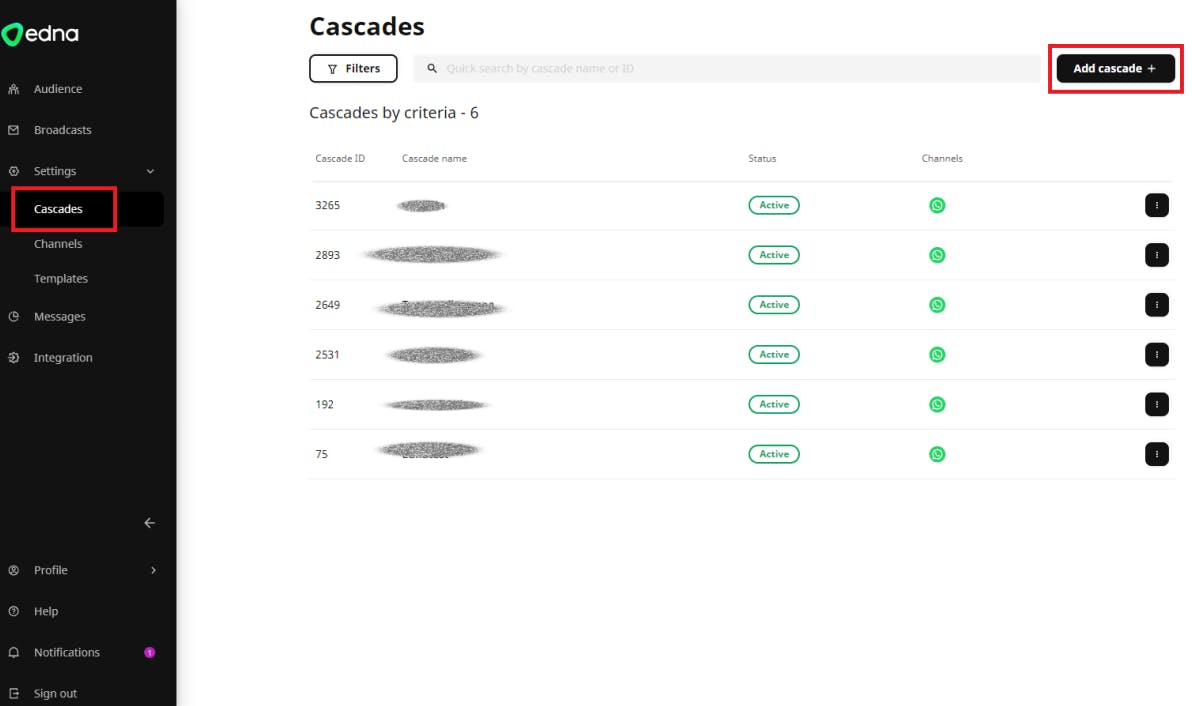

Go to the Cascades section. Click on the Add cascade + button.

⁠

Write down the name of the cascade.

⁠

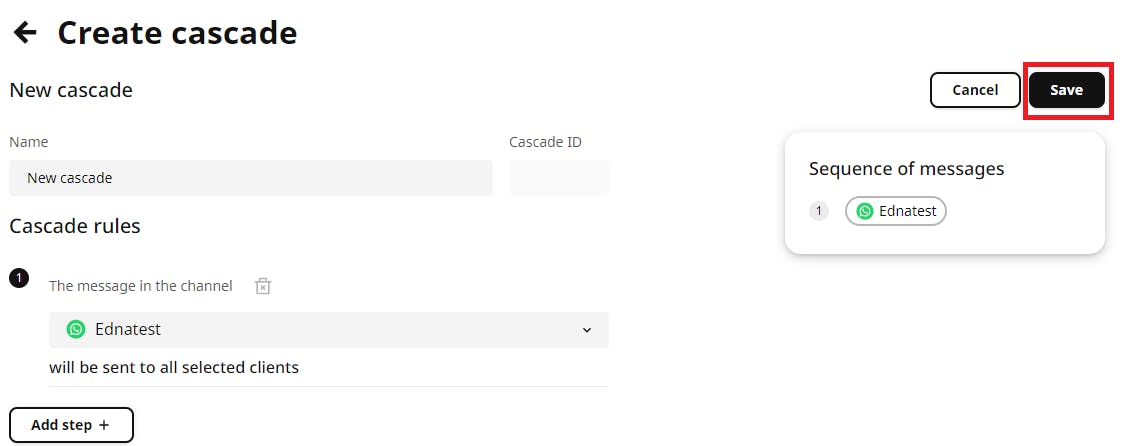

In the Create a cascade section, in The message in channel field, select a channel. At the moment, only WhatsApp channels are available for integration, i.e. only cascades with one point are available for creation.

⁠

Save the cascade by clicking the Save button.

⁠

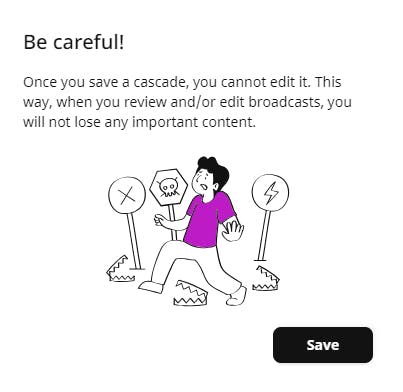

Confirm the action in the pop-up window.

⁠

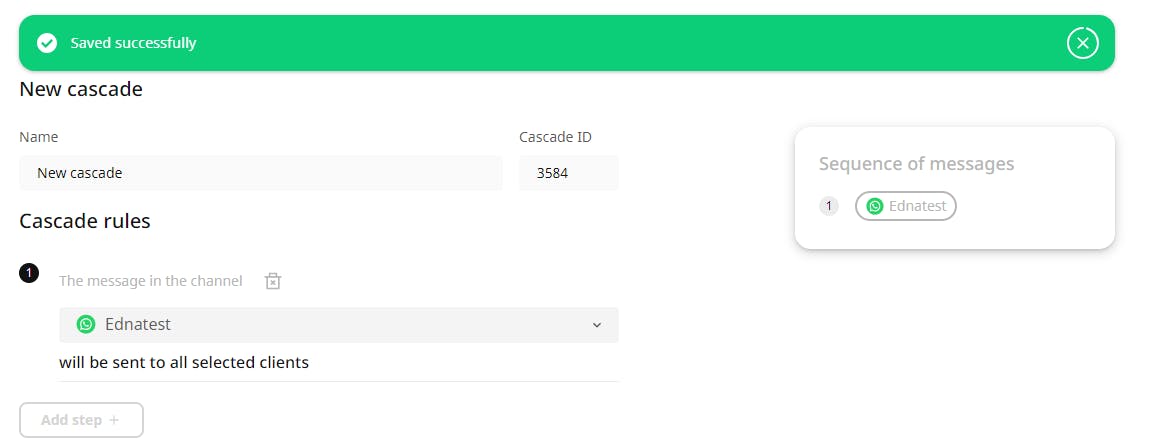

After saving the cascade, its ID will appear in the Cascade ID field. You will need it later when setting up the

@Project Channel⁠

⁠

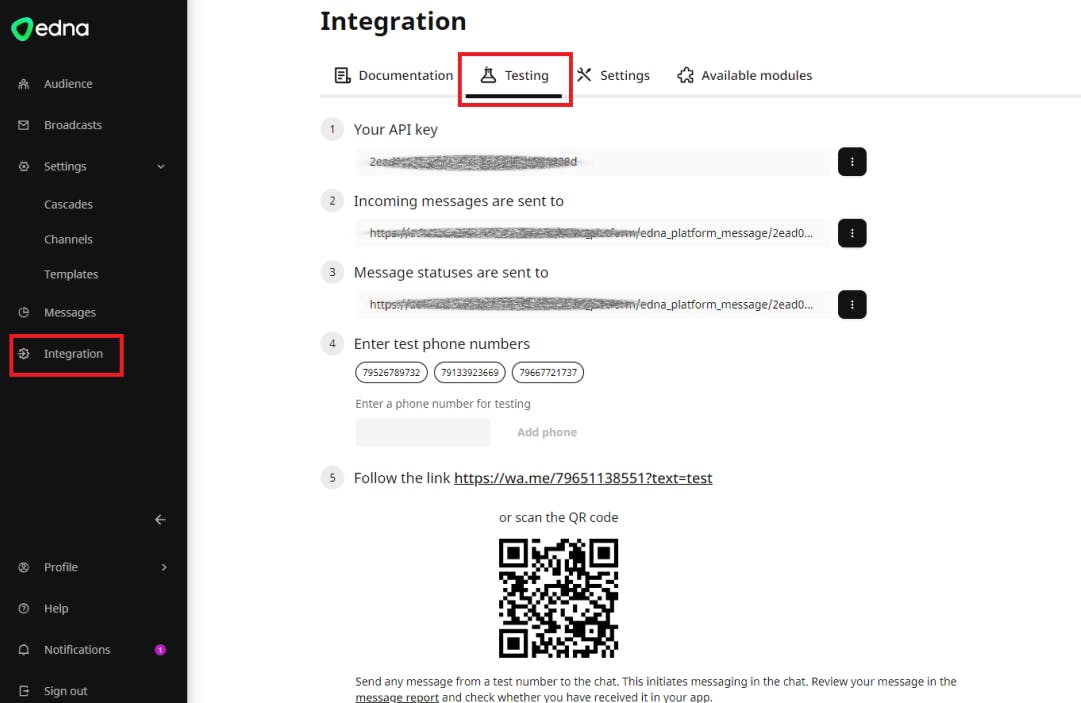

Go to the Integration → Testing section.

⁠

Copy the value from the Your API key field. You will need it later when setting up the

@Project Channel⁠

2. Agent channel configuration in the Platform

You need to create and configure an

@Project Channel⁠

with the “Edna Pulse” connector.

Click on the agent settings button.

⁠

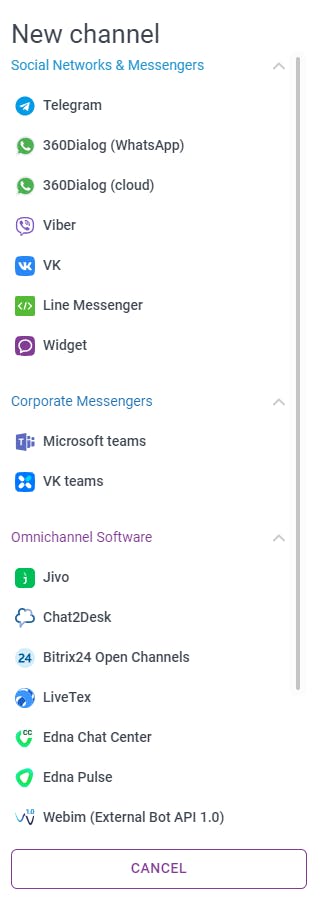

Click the Add channel button.

⁠

The

@End Channel⁠

selection panel will open.

⁠

Select

@Edna Pulse⁠

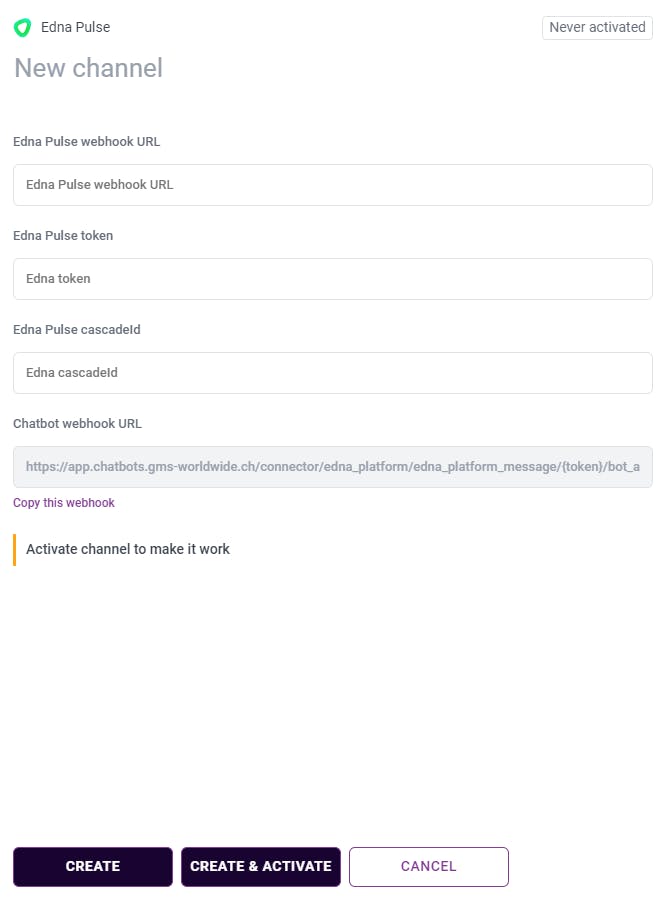

The

@Project Channel⁠

creation panel will open.

⁠

Optionally, enter a title for this

@Project Channel⁠

in the Name field with the placeholder New channel.

⁠

Enter the link

https://app.edna.ru/api⁠

https://app.edna.io/api⁠

in the Edna Pulse webhook URL field.

⁠

Paste the API key in the Edna Pulse token field.

⁠

Insert the cascade ID in the Edna Pulse cascadeId field.

⁠

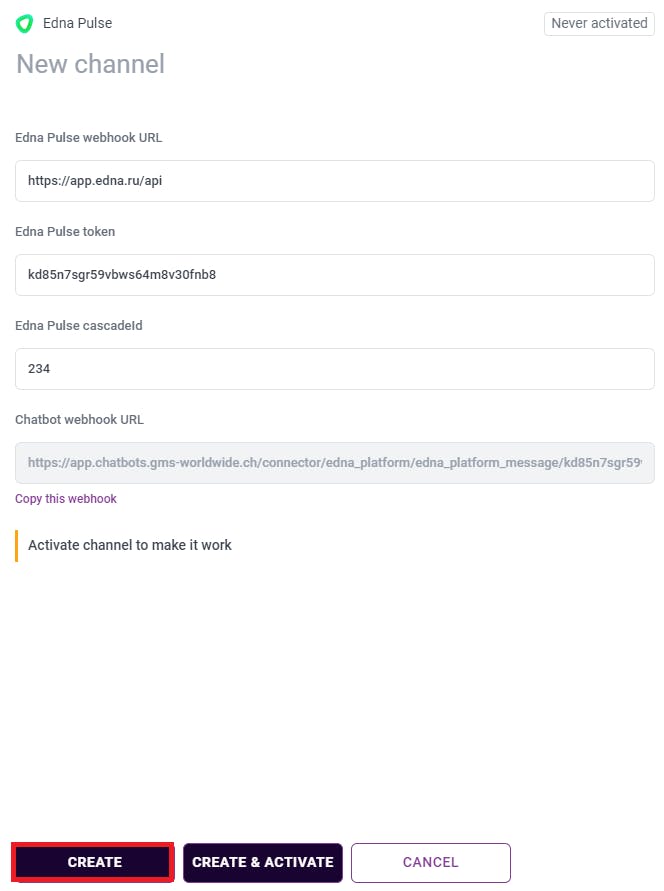

To save the

@Project Channel⁠

without activating it, click the CREATE button.

⁠

To save and activate the

@Project Channel⁠

, click the CREATE & ACTIVATE button.

⁠

The

@Project Channel⁠

will be saved and activated if:

The

@Agent⁠

is trained;

The token in the Edna Pulse token field is unique (there are no active channels of the same type with the same token);

The channel address is accessible;

The channel webhook is registered succesfully.

The

@Project Channel⁠

will be saved but not activated if one or more conditions are not met.

To cancel

@Project Channel⁠

creation, click the CANCEL button.

⁠

Editing and Deleting Agent Channel

To edit an

@Project Channel⁠

, click on its icon on the

@Agent⁠

card.

⁠

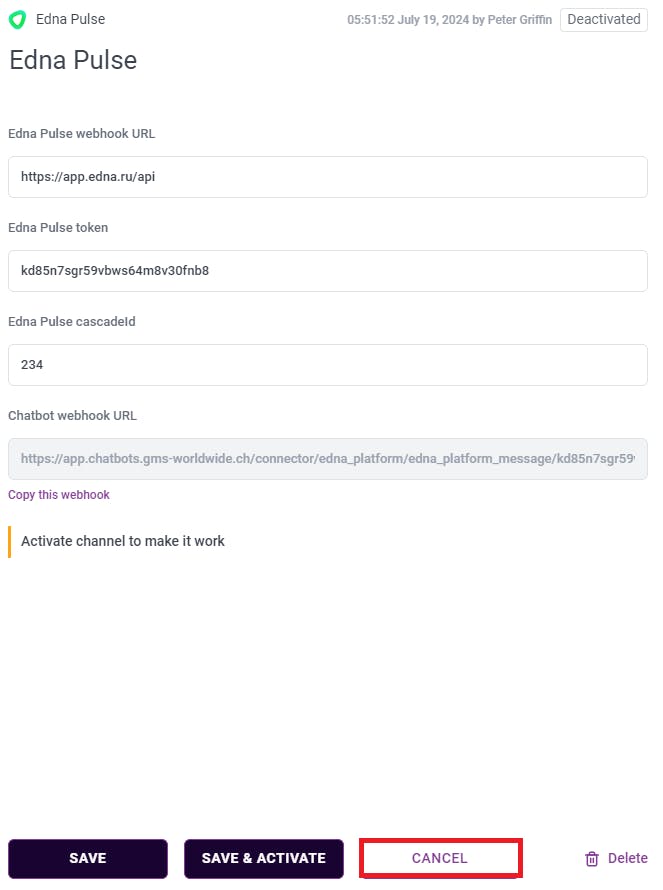

To edit the

@Project Channel⁠

name, click the field and enter a new value.

To edit the Edna Pulse token field, click the field and enter a new value.

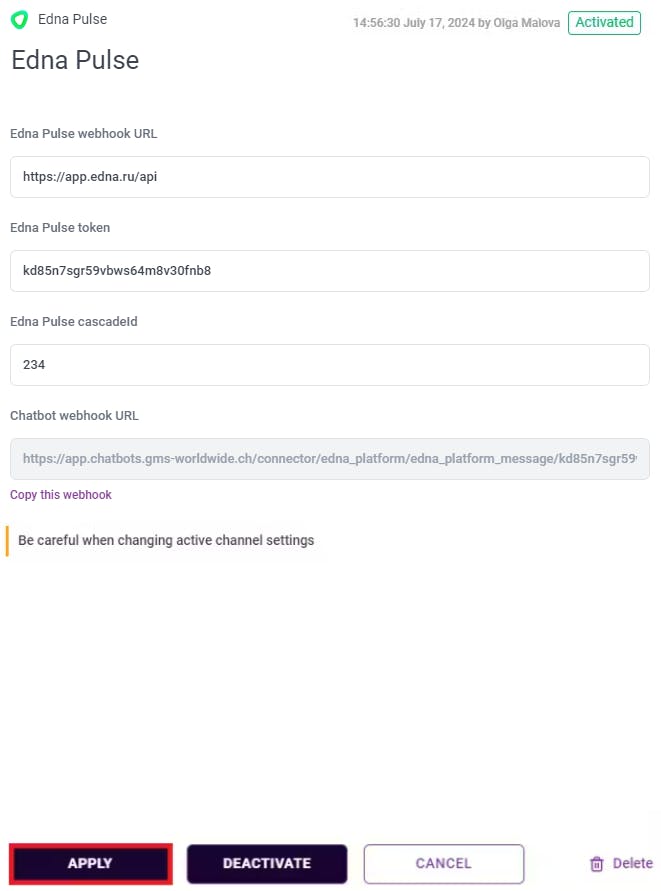

To apply changes to an activated

@Project Channel⁠

, click the APPLY button.

⁠

Changes will be applied if:

The

@Agent⁠

is trained;

The token in the Edna Pulse token field is unique (there are no active channels of the same type with the same token);

The channel address is accessible;

The channel webhook is registered succesfully.

Changes will not be applied if one or more conditions are not met.

To deactivate the

@Project Channel⁠

, click the DEACTIVATE button.

⁠

To apply changes to a non-activated

@Project Channel⁠

, click the SAVE button.

⁠

To apply changes and activate the

@Project Channel⁠

, click the SAVE & ACTIVATE button.

⁠

Changes will be applied and the

@Project Channel⁠

will be activated if:

The

@Agent⁠

is trained;

The token in the Edna Pulse token field is unique (there are no active channels of the same type with the same token);

The channel address is accessible;

The channel webhook can be registered.

Changes will be applied but the

@Project Channel⁠

will not be activated if one or more conditions are not met.

To cancel making changes, click the CANCEL button.

⁠

To delete the

@Project Channel⁠

, click the DELETE button.

⁠

Communication

Message template

Templates are messages with which a WhatsApp

@Bot⁠

starts a

@Chat⁠

with the

@Bot User⁠

. To send a mailing to

@Bot User⁠

s on WhatsApp, you need to create a template, send it for approval, if unsuccessful, reformulate and send a new template, and if approved, initiate the mailing using the

@Notification⁠

@Slot⁠

Mapping of Channel variables from Edna Pulse

Mapping  of Channel variables from Edna Pulse

Channel variable

End channel

Variable in the body of an incoming request from a channel

Peculiarities

channel_visitor_id

Edna Pulse

subscriber.identifier

channel_conversation_id

Edna Pulse

subscriber.identifier

channel_visitor_firstname

Edna Pulse

userInfo.firstName

channel_visitor_lastname

Edna Pulse

userInfo.lastName

channel_visitor_account

Edna Pulse

userInfo.userName

channel_visitor_phone

Edna Pulse

subscriber.identifier

After sending a mailing by

@Notification

⁠

, this variable contains the phone number to which the mailing was sent

channel_visitor_email

Edna Pulse

channel_visitor_source

Edna Pulse

channel_visitor_auth

Edna Pulse

channel_visitor_location

Edna Pulse

channel_message_id

Edna Pulse

channel_message_recipient

Edna Pulse

channel_webhook_url

Edna Pulse

channel_reply_to

Edna Pulse

No results from filter

⁠

Communication in Edna Pulse

Communication in Edna Pulse

Functionality

Channel

Availability

Description

channel_chat_id

Edna Pulse

Yes

Format: channel_visitor_id|edna platform

Messages will reach the Bot User if the Agent writes first in an existing chat

Edna Pulse

Yes

Buttons

Edna Pulse

Yes

Buttons from 1 to 3 are transferred as buttons, 4 or more buttons are converted into a numbered list.

Transfer to operator

Edna Pulse

Transferring files as files from the Agent

Edna Pulse

Yes

Transferring files as links from the Agent

Edna Pulse

Yes

Receiving a file from the Bot User into a script

Edna Pulse

Yes

Format: file: file type|file id|link to the file

Example: file:video|01892905-e1ad-47c1-8a48-39303776b107|

https://files.mfms.ru/wabucket2/chatme_WA/GFgOgvt8SvmxTMwn3fDPsA.jpg?AWSAccessKeyId=wabucket2&Expires=1684850140&Signature=ky1QtB4FHMyIyhPPw5fDGccJGTI%3D

⁠

Receiving geolocation from an Bot User in a Script

Edna Pulse

Buttons from 1 to 3 are transferred as buttons, 4 or more buttons are converted into a numbered list.

Delivery of messages over 1000 characters from Agent to Bot User

Edna Pulse

Yes

Get a link to the lead source

Edna Pulse

Markdown usage

Edna Pulse

Yes

The following markup types are supported: *bold font* _italics_ *_bold italics_*

Mailing with Notification

Edna Pulse

Yes

Before creating a Notification slot, you must do the following:

1. Create a template in WhatsApp. 2. Create a channel(without this, the Slot cannot be saved).

Important: only one Agent can be connected to one WABA.
