How to create your Agent

Export, import, cloning and replacing an Agent

Exporting an Agent

The

@Platform⁠

implements functions for exporting and importing the

@Agent⁠

configuration file. With these features, you can save an

@Agent⁠

file to your computer, forward the file to your colleagues, and upload

@Agent⁠

files to the

@Platform⁠

To export the

@Agent⁠

you need to:

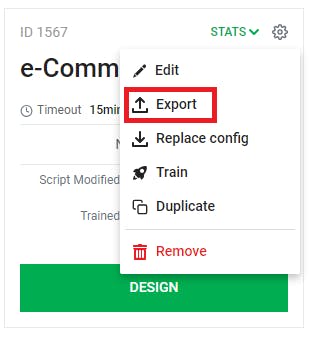

Go to the

@Projects Tab⁠

, open the

@Project⁠

, find the required

@Agent⁠

and click on the Export button in the drop-down menu.

⁠

The agent will be saved in .cfg format. Contents of the exported file:

⁠

@Agent⁠

@Script⁠

;

⁠

@Intent⁠

s used in the

@Script⁠

;

⁠

@External Request⁠

s used in the

@Script⁠

;

The value of the

@Continue Conversation⁠

option;

The

@Inactivity Timeout⁠

value in seconds — the time of inactivity of the

@Bot User⁠

, after which the

@Dialog⁠

with the

@Agent⁠

is closed;

Grouping of

@Slot⁠

s (collapsed

@Script Branch⁠

es).

Now this

@Agent⁠

can be imported into any

@Project⁠

Importing an Agent

Process of import

In order to import an

@Agent⁠

into a new

@Project⁠

, you must:

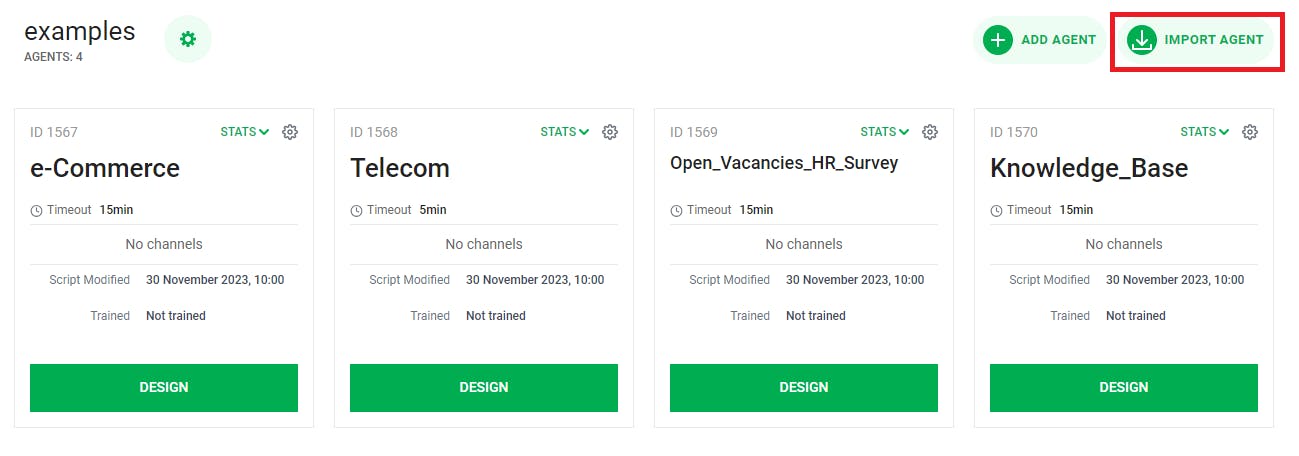

Click on the Import agent button in the

@Project⁠

properties.

⁠

In the window that appears, click Browse and select the desired file with the extension .cfg, .json. or .xlsx. Provide a name for this

@Agent⁠

in the new

@Project⁠

and click Import.

⁠

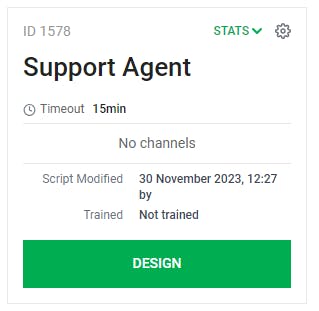

The

@Agent⁠

will appear in the list of Agents for this

@Project⁠

The imported

@Agent⁠

does not contain any

@Project Channel⁠

and is not trained.

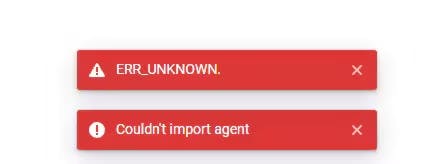

If you try to download a file with an unsupported extension or invalid structure, an error will appear with the text Couldn’t import agent.

⁠

Import from Agent configuration file

By importing an

@Agent⁠

@Script⁠

from a configuration file, it is possible to create

@Agent⁠

s with any structure allowed in the

@Platform⁠

The file of this format is the result of exporting the

@Agent⁠

from the

@Platform⁠

Acceptable file extensions

At the moment, configuration files of the following extensions are available for download:

.cfg

.json

Contents of the imported Agent

When importing an

@Agent⁠

from a configuration file, the following are imported:

⁠

@Script Tree⁠

, including grouping of

@Slot⁠

s (collapsed

@Script Branch⁠

es);

⁠

@Company⁠

resources used in the

@Script⁠

(

@Intent⁠

@External Request⁠

s and

@Vocabulary⁠

), according to the import rules (

Export-import of Intents when exporting-importing an Agent⁠

Export-import of vocabularies when exporting-importing an Agent⁠

Export-import of External requests when exporting-importing an Agent⁠

);

The value of the

@Continue Conversation⁠

option;

@Inactivity Timeout⁠

value;

In the configuration file, the

@Inactivity Timeout⁠

value is specified in seconds. After import, the value is displayed on the

@Agent⁠

card in hours and minutes.

⁠

If the

@Inactivity Timeout⁠

value in the configuration file was manually changed to a value that does not result in an integer when converted to minutes, then upon import it will be rounded up to an integer number of minutes.

If the

@Inactivity Timeout⁠

value in the configuration file was manually changed to a negative number, 0, or a non-number value, the

@Inactivity Timeout⁠

value will be reset to 15 minutes upon import.

If there is an

@Incoming Request Slot⁠

in the

@Script⁠

, a new

@Incoming Request Webhook⁠

address will be generated for this

@Slot⁠

, which will work only after the

@Agent⁠

is trained.

If there is a

@Notification⁠

@Slot⁠

in the

@Script⁠

, a new webhook address will be generated for this

@Slot⁠

, which will work only after the

@Agent⁠

is trained.

Imported
`@Agent`⁠
settings

In the imported

@Agent⁠

, the

@Continue Conversation⁠

option is disabled.

When importing, the standard

@Inactivity Timeout⁠

value is set to 15 minutes.

Replacement of an
`@Agent`⁠

`@Script`⁠
⁠

The replacement function replaces the

@Script⁠

of an existing

@Agent⁠

with a different

@Script⁠

, which is contained in the downloaded configuration file. This also changes the

@Inactivity Timeout⁠

value and the

@Continue Conversation⁠

option value.

When importing from a configuration file, the values are set in accordance with those specified in the file;

When importing from an Excel file, the standard

@Inactivity Timeout⁠

value is set to 15 minutes, the

@Continue Conversation⁠

option is disabled.

The

@Agent⁠

@Script⁠

replacement function can be used, for example, to make changes to an

@Agent⁠

that is already communicating with

@Bot User⁠

s in

@End Channel⁠

Export the

@Agent⁠

configuration file;

Import it into the

@Platform⁠

;

Make changes to the imported

@Agent⁠

;

If testing is successful, export the

@Agent⁠

and replace the working

@Agent⁠

with this configuration file.

In this way, the

@Agent⁠

’s existing

@Chat⁠

s with

@Bot User⁠

s are preserved and the process of testing and changing the

@Script⁠

made does not disrupt the process of communication between the

@Agent⁠

and these

@Bot User⁠

Replacing the

@Agent⁠

@Script⁠

is done as follows:

Click the Replace config button in the

@Agent⁠

settings menu.

⁠

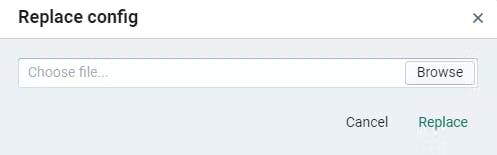

In the window that appears, click Browse and select the desired file with the .cfg or .json extension. Click Replace.

⁠

For the

@Agent⁠

to work, train it by clicking the Train button in

@BotBuilder⁠

or on the

@Agent⁠

card.

During the replacement process, the following will be imported from the configuration file:

⁠

@Script Tree⁠

, including

@Slot⁠

s grouping (collapsed

@Script Branch⁠

);

@Company Resources⁠

used in the

@Script⁠

(

@Intent⁠

@External Request⁠

s and

@Vocabulary⁠

), according to the import rules (

Export-import of Intents when exporting-importing an Agent⁠

Export-import of vocabularies when exporting-importing an Agent⁠

Export-import of External requests when exporting-importing an Agent⁠

);

The value of the

@Continue Conversation⁠

option;

⁠

@Inactivity Timeout⁠

value.

When importing a configuration file with

@Incoming Request Slot⁠

If the

@Script⁠

already had an

@Incoming Request Slot⁠

before the replacement, the webhook address of the

@Incoming Request Slot⁠

in the new

@Script⁠

will remain the same as before the replacement;

If there was no

@Incoming Request Slot⁠

in the

@Script⁠

before the replacement, a new

@Incoming Request Webhook⁠

address will be generated, which will start working after the

@Agent⁠

is trained.

When importing a configuration file with

@Notification⁠

If the

@Script⁠

already had a

@Notification⁠

@Slot⁠

before the replacement, the

@Notification⁠

webhook address in the new

@Script⁠

will remain the same as before the replacement;

If there was no

@Notification⁠

@Slot⁠

in the

@Script⁠

before the replacement, a new webhook address will be generated for this

@Slot⁠

, which will start working after the

@Agent⁠

is trained.

During the replacement process, the following will be imported from an Excel file (similar to creating an

@Agent⁠

from Excel):

⁠

@Agent⁠

@Script⁠

;

⁠

@Agent⁠

@Intent⁠

s will be imported into the

@Company Resources⁠

;

In the imported

@Agent⁠

, the

@Continue Conversation⁠

option is disabled;

When importing, the standard

@Inactivity Timeout⁠

value is set to 15 minutes.

The new

@Script⁠

will start working only after the

@Agent⁠

is retrained.

Cloning of an Agent

To clone an

@Agent⁠

you need to:

Open the

@Agent⁠

settings by clicking on the button on the

@Agent⁠

card.

⁠

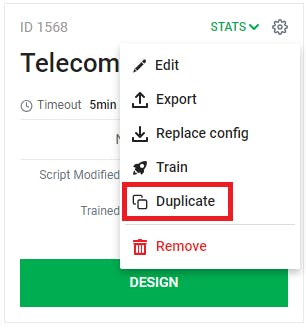

Click the Duplicate button.

⁠

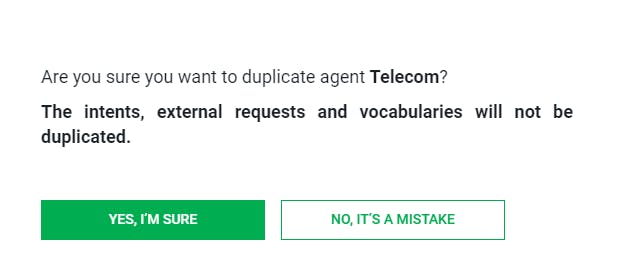

After clicking the button, a warning will appear:

⁠

Confirm the cloning of the

@Agent⁠

by pressing the YES, I’M SURE button.

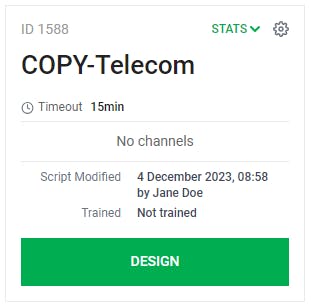

After cloning, a new

@Agent⁠

is created with the name COPY-[name of the cloned agent] and with its own unique identifier

@agent_id⁠

⁠

When cloning an

@Agent⁠

, the

@Company Resources⁠

used in the

@Script⁠

are cloned according to the import rules(

Export-import of Intents when exporting-importing an Agent⁠

Export-import of vocabularies when exporting-importing an Agent⁠

Export-import of External requests when exporting-importing an Agent⁠

When cloning an

@Agent⁠

, the value of the

@Continue Conversation⁠

option is saved.

When cloning an

@Agent⁠

, the

@Inactivity Timeout⁠

value is saved.

If there is an

@Incoming Request Slot⁠

, a new webhook address for this

@Slot⁠

will be generated in the

@Script⁠

The cloned

@Agent⁠

does not contain any

@Project Channel⁠

s and is not trained.
