How to build a script of an Agent

Moving and cloning Slots and Script Branches

Changing the parent of a branch

Change parent or change the

@Parent of a Script Branch⁠

— a function of moving a

@Slot⁠

to another place in the

@Script⁠

along with the entire

@Script Branch⁠

following this

@Slot⁠

In order to change the

@Parent of a Script Branch⁠

, you need to right-click on the desired

@Slot⁠

and select the Change parent function in the context menu.

⁠

After selecting the Change parent function, a window for selecting a new

@Parent of a Script Branch⁠

opens.

⁠

In order to select the

@Parent of a Script Branch⁠

, you must click on the Select destination drop-down list box. The drop-down list offers only those

@Slot⁠

s that are at the ends of the

@Script Branch⁠

and are compatible with the first

@Slot⁠

of the moved

@Script Branch⁠

according to the

@Slot Neighborhood Rules⁠

⁠

To make it easier to find the required

@Slot⁠

, you can use the Search field. The search for the required

@Slot⁠

is carried out by:

Slot_ID);

⁠

@Slot⁠

name;

⁠

@Slot⁠

Type.

Select the required

@Slot⁠

in the list and click on it, then confirm the action by clicking the Change parent button.

Cloning a script branch

Clone to is an option to create an exact copy of the

@Script Branch⁠

in another place in the

@Script⁠

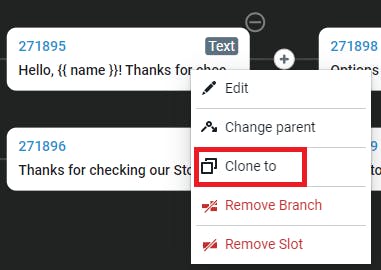

To clone a

@Script Branch⁠

, you need to right-click on the desired

@Slot⁠

and select the Clone to function in the context menu.

⁠

After selecting the Clone to function, a window for selecting a new

@Parent of a Script Branch⁠

opens, after which the cloned

@Script Branch⁠

will be located.

⁠

In order to select a new

@Parent of a Script Branch⁠

, you must click on the Select destination drop-down list box. The drop-down list offers only those

@Slot⁠

s that are at the ends of the

@Script Branch⁠

and are compatible with the first

@Slot⁠

of the cloned

@Script Branch⁠

according to the

@Slot Neighborhood Rules⁠

⁠

To make it easier to find the required

@Slot⁠

, you can use the Search field. The search for the required Slot is carried out by:

⁠

@Slot⁠

_ID;

⁠

@Slot⁠

name;

⁠

@Slot⁠

Type.

@Script Branch⁠

can be cloned to the end of itself.

Select the required

@Slot⁠

in the list and click on it, then confirm the action by clicking the Clone slot button.

Important:
@Jump⁠

@Slot⁠
s that reference
@Slot⁠
s from the copied
@Script Branch⁠
after copying will have
@Slot⁠
s from the copied
@Script Branch⁠
in the Destination field, and not from the copied one.

Changing the order of Subslots

To change the order of

@Subslot⁠

s for

button⁠

and

condition⁠

, you can use the following function:

To move a

@Subslot⁠

up, click the Move up button. The selected

@Subslot⁠

and its associated

@Script Branch⁠

will move up one position and swap places with the

@Subslot⁠

above it.

To move a

@Subslot⁠

down, click the Move down button. The selected

@Subslot⁠

and its associated

@Script Branch⁠

will move down one position and swap places with the

@Subslot⁠

below it.

⁠

⁠
