How to succesfully train your Agent

Requirements for successful Agent training

Agent Script Validation

⁠

@Script Validation⁠

is a check during

@Agent⁠

@Training⁠

that all system requirements for the

@Agent⁠

are satisfied.

Agent training

There are two ways to train an

@Agent⁠

Click the Train button located in the upper right corner of

@BotBuilder⁠

in the Agent Designer tab.

⁠

Click the button on the

@Agent⁠

card.

⁠

When you press the Train button:

⁠

@Script Validation⁠

occurs. The process can take some time, up to 10 minutes on large

@Agent⁠

Upon successful completion of the

@Script Validation⁠

, a

@Trained Agent Model⁠

is created based on the valid

@Script⁠

During this time, the Train button will be inactive. If the

@Script⁠

does not meet the requirements, then

@Script Validation⁠

will fail and an error text will appear in the lower right corner.

Important: If this
@Script⁠
has already been trained, and after making changes the
@Script Validation⁠
fails, then the old
@Trained Agent Model⁠
will work.

Agent requirements for successful validation

In order for the

@Script Validation⁠

to be successful, the

@Script⁠

must satisfy the following rules:

The

@Script⁠

should not have a

@Script Branch⁠

without a

@Blocking Slot⁠

;

The

@Script Branch⁠

es after the

@Timer⁠

and

@Incoming Request Slot⁠

s must be closed;

⁠

@Intent⁠

‘s

@Training Dataset⁠

must contain at least two lines;

Each

@Intent⁠

@Training Phrase⁠

phrase must contain at least one letter;

The name of

@User Context Variables⁠

must comply with the

requirements for the name of User Context Variables⁠

The contents of the

@result⁠

@Subslot⁠

of a

@Regular Expression Slot⁠

must conform to its syntax.

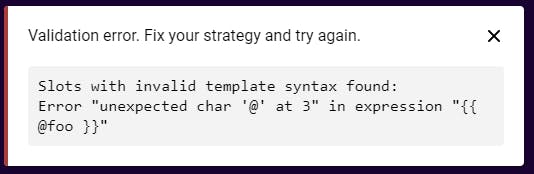

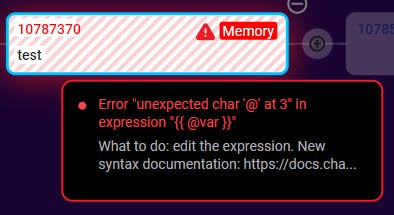

The expression in the

@condition⁠

@Subslot⁠

of the

@Transition Rule⁠

@Slot⁠

must match its syntax.

In the

@Incoming Request Slot⁠

@Slot Filling⁠

@Memory⁠

@External Request⁠

@Slot⁠

s, there is no attempt to overwrite System context variables that are prohibited from overwriting.

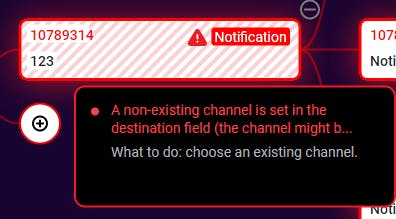

The

@Notification⁠

@Slot⁠

uses the existing Agent Channel.

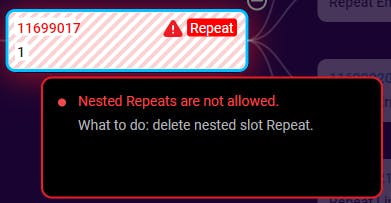

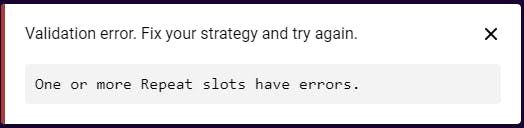

There are no nested loops in the

@Repeat⁠

@Slot⁠

Validation errors and their designation in the Tree

1. Lack of blocking slots in script branches

⁠

@Blocking Slot⁠

— a

@Slot⁠

at which the

@Agent⁠

waits for an incoming message from the

@Project Channel⁠

⁠

@Bot user’s Message⁠

Pushing a

@button⁠

Each

@Script Branch⁠

must contain at least one

@Blocking Slot⁠

, otherwise, if there is a

@Script Branch⁠

without a

@Blocking Slot⁠

, the

@Agent⁠

can enter into permanent cycle (it will go through all

@Slot⁠

s from the

@Script Branch⁠

an infinite number of times).

List of

@Blocking Slot⁠

⁠

@Wait For Reaction⁠

;

⁠

@Button Menu⁠

;

⁠

@Change Chat Mode⁠

;

⁠

@Incoming Request Slot⁠

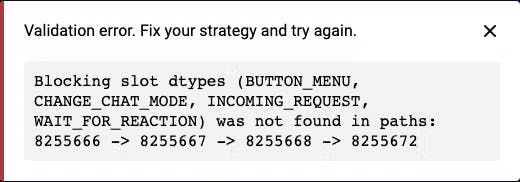

If there is not a single

@Blocking Slot⁠

from the list in the

@Script Branch⁠

, then the following error will appear during

@Agent⁠

@Training⁠

, where *Slot ID* -> *Slot ID* is the path from the Start

@Slot⁠

to the

@Slot⁠

that ends the invalid

@Script Branch⁠

⁠

Important: The
@Blocking Slot⁠
does not have to be at the end of the
@Script Branch⁠
. It can be present anywhere in the
@Script Branch⁠
.

Error highlighting and tooltip

⁠

Highlighting type

Validation error

Highlighting

Error text

Branch highlighting

No blocking slots in script branches.

The entire scenario branch that lacks a blocking slot is highlighted. When adding a slot to a problematic branch, the new slot in the tree is darkened and not highlighted in any color.

Blocking slot types (Button menu, Change chat mode, Incoming request, Wait for reaction) were not found in the branch: *Slot ID* -> *Slot ID*” What to do: add blocking slots to the branch.

No results from filter

⁠

2. Unclosed script branches

The following

@Slot⁠

s cannot be located at the end of a

@Script Branch⁠

⁠

@Timer⁠

;

⁠

@Incoming Request Slot⁠

These

@Slot⁠

s determine the beginning of one of the

@Agent⁠

's scenarios, so some

@Slot⁠

s must be added after them.

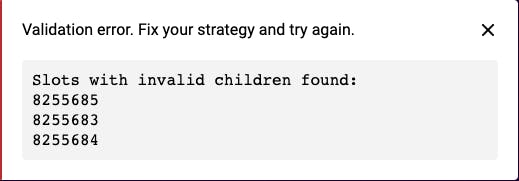

If the Scenario at the end of the

@Script Branch⁠

contains one of the listed

@Slot⁠

s, then the following error will appear during

@Agent⁠

@Training⁠

⁠

⁠

Where *Slot ID* is the ID of the

@Slot⁠

after which the

@Script⁠

must be continued.

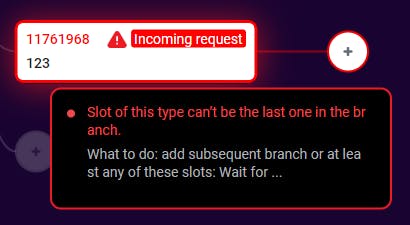

Error highlighting and tooltip

⁠

Highlighting type

Validation error

Highlighting

Error text

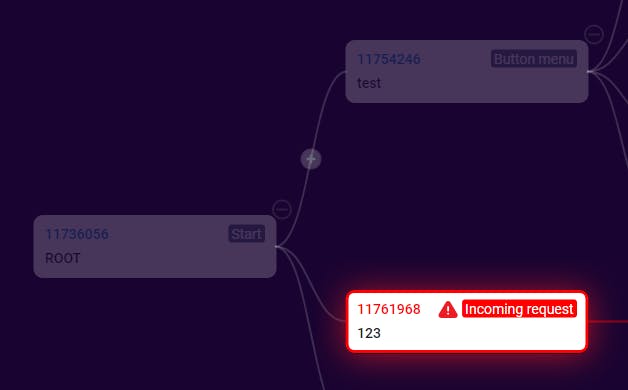

Slot highlighting followed by a button to add a new slot

Unclosed script branches.

The slot after which you need to continue the script, the button to add a slot, and the connecting line between them are highlighted.

Slot of this type can’t be the last one in the branch. What to do: add subsequent branch or at least any of these slots: Wait for reaction, Change chat mode, Jump.

No results from filter

⁠

3. Insufficient number of phrases in the training set

For successful recognition, the

@Training Dataset⁠

should be filled according to the rules described in the article

Natural language recognition⁠

There must be at least two rows in the

@Intent⁠

@Training Dataset⁠

⁠

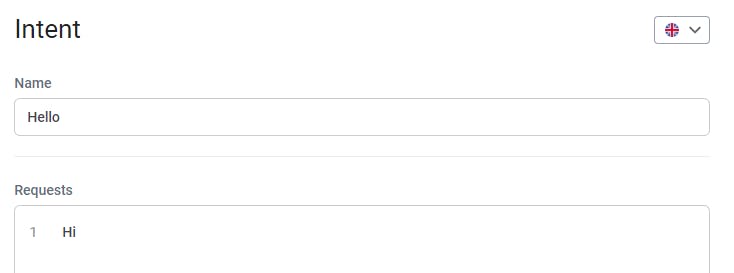

If there is only one line in the

@Training Dataset⁠

, an error will appear when Training the

@Agent⁠

, where the name of the problematic

@Intent⁠

is specified in quotation marks.

⁠

⁠

Error highlighting and tooltip

⁠

Highlighting type

Validation error

Highlighting

Error text

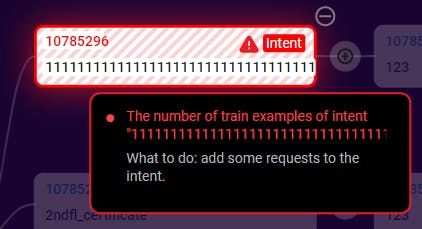

Slot highlighting

Insufficient number of phrases in the training set

The problematic intent sub-slot with an insufficient number of phrases in the training set is highlighted.

The number of requests of the intent ‘intent name’ is not enough, it should be at least 2. What to do: add some requests to the intent.

No results from filter

⁠

4. Insufficient number of letters in the training set phrase

One

@Intent⁠

@Training Phrase⁠

cannot contain less than one letter.

⁠

If the

@Intent⁠

@Training Phrase⁠

does not contain at least one letter character, then the following error will appear during

@Agent⁠

@Training⁠

⁠

⁠

Highlighting type

Validation error

Highlighting

Error text

Slot highlighting

Insufficient number of letters in the training set phrase

The problematic intent sub-slot with an insufficient number of letters in the training sample phrase is highlighted.

The number of letters in the request "..." of this intent is not enough, it should be at least 1. What to do: edit the request so that it contains at least 1 letter.

No results from filter

⁠

5. Unescaped characters in the result sub-slot of the Regular Expression slot

The ' and \ characters in the

@result⁠

@Subslot⁠

of a

@Regular Expression Slot⁠

must be escaped: they must be preceded by a \ character.

If there is no escaping of the \ character in the

@result⁠

@Subslot⁠

of the

@Regular Expression Slot⁠

, the following error will appear during

@Agent⁠

@Training⁠

⁠

⁠

Error highlighting and tooltip

⁠

Highlighting type

Validation error

Highlighting

Error text

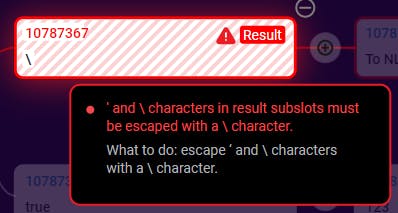

Slot highlighting

Unescaped characters in the result sub-slot of the Regular Expression slot

The problematic result sub-slot with unescaped ' or \ characters is highlighted.

‘ and \ characters in result subslots must be escaped with a \ character. What to do: escape ‘ and \ characters with a \ character.

No results from filter

⁠

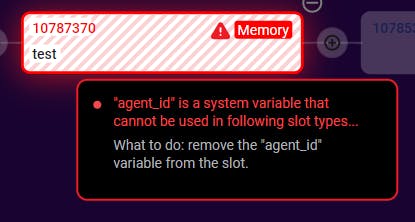

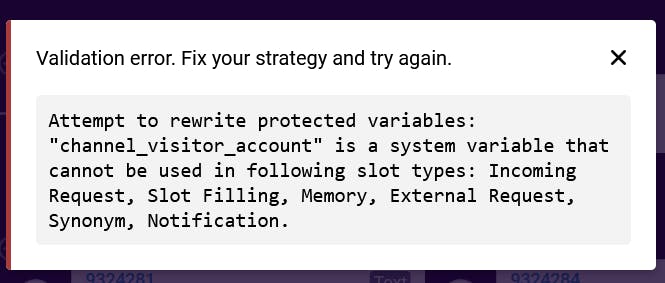

6. An attempt was made to overwrite system context variables that are not allowed to be overwritten.

The following

@System Context Variables⁠

and

@Channel Variables⁠

are not overwriteable:

Variable

Description

Usage

Changed by user

agent_id

Unique identifier of the

@Agent

⁠

in the

@Platform

⁠

identification of the current

@Agent

⁠

in this

@Chat

⁠

Disabled

chat_id

Unique

@Chat

⁠

ID in the

@Platform

⁠

@Chat

⁠

Identification in the

@Platform

⁠

@Chat

⁠

identification in

@Incoming Request Slot

⁠

Disabled

channel_chat_id

⁠

@Bot User

⁠

identifier in the

@End Channel

⁠

is a synthetic variable, the rules for its formation are set in the

@Connector

⁠

settings for this channel

Identification of

@Chat

⁠

and/or

@Bot User

⁠

in the

@End Channel

⁠

Creation of

@chat_id

⁠

Disabled

channel_id

Unique identifier of the

@End Channel

⁠

Unique identifier of the

@Project Channel

⁠

in which communication takes place in this

@Chat

⁠

Disabled

date

Time of receiving the last message from the

@Bot User

⁠

= time of receiving the last value of

@client_message

⁠

, but specifically from the

@Project Channel

⁠

(and not in the

@Memory

⁠

@Slot

⁠

)

in a

@Script

⁠

at the discretion of the user

for execution purposes of the

@Script

⁠

Disabled

dialog_id

Conversation ID

for system purposes

Identification of new

@Dialog

⁠

Disabled

modified_at

Time of last modification of the

@Chat Context

⁠

in a

@Script

⁠

at the discretion of the user

Disabled

slot_id

⁠

@Platform

⁠

-unique identifier of the last "executed"

@Slot

⁠

in the

@Script

⁠

in a

@Script

⁠

at the discretion of the user

Disabled

strategy_modified_at

Creation time

@Trained Agent Model

⁠

(time of last

@Agent

⁠

@Training

⁠

)

in a

@Script

⁠

at the discretion of the user, also used to reset the

@Chat

⁠

state when

@Training

⁠

the

@Agent

⁠

Disabled

confidence

Percentage of confidence of the

@NLU

⁠

model when recognizing

@Request

⁠

when going through the

@Script

⁠

after the

@NLU

⁠

@Slot

⁠

Disabled

error

Error text received as a result of executing

@NLU

⁠

@Regular Expression Slot

⁠

@Memory

⁠

@Slot

⁠

when going through the

@Script

⁠

after

@NLU

⁠

@Regular Expression Slot

⁠

@Memory

⁠

@Slot

⁠

Disabled

incoming_request_id

⁠

@Platform

⁠

-unique identifier (token) of

@Incoming Request

⁠

used to initialize the passage of the

@Incoming Request Slot

⁠

Disabled

intent

⁠

@Platform

⁠

-unique identifier of the recognized Intent

when going through the

@Script

⁠

after the

@NLU

⁠

@Slot

⁠

Disabled

IR_url

Address of the active

@Incoming Request Webhook

⁠

in this

@Trained Agent Model

⁠

To send a request from external systems to the

@Agent

⁠

Disabled

notification_count

Counter of mailings in a specific

@Chat

⁠

in a

@Script

⁠

at the discretion of the user

Disabled

notification_task_id

Takes the value equal to the Mailing Task ID that the system sent in the response to the

@Mailing Request

⁠

from the external system

in a

@Script

⁠

at the discretion of the user

Disabled

notification_init_time

Start date and time of the

@Notification

⁠

@Slot

⁠

execution in UTC

in a

@Script

⁠

at the discretion of the user

Disabled

notification_message_id

When a mailing is sent, the

@End Channel

⁠

returns the message id

⁠

@Agent

⁠

movement through the

@Script

⁠

Disabled

notification_id

mailing id, currently =

@Notification

⁠

@Slot

⁠

@Agent

⁠

movement through the

@Script

⁠

Disabled

notification_status

Technical status of the mailing Possible values: 'no_account', 'failed', 'sent', 'delivered', 'read'

⁠

@Agent

⁠

movement through the

@Script

⁠

Disabled

platform_chat_id

"Intermediate version" of the Chat ID, designed to match old chat IDs with new IDs

Service variable, not used yet

Disabled

chat_language

The variable stores the recognized language

in a

@Script

⁠

at the discretion of the user

Disabled

repeat_index

the variable is used to reflect the number of the current loop iteration, iteration numbering starts from 0

Disabled

No results from filter

⁠

Name

Description

Editing by a user

channel_visitor_id

ID of

@Bot User

⁠

@Chat

⁠

in an

@End Channel

⁠

Disabled

channel_conversation_id

ID of

@Dialog

⁠

@Chat

⁠

in an

@End Channel

⁠

Disabled

channel_visitor_firstname

⁠

@Bot User

⁠

‘s name in an

@End Channel

⁠

Disabled

channel_visitor_lastname

⁠

@Bot User

⁠

‘s surname in an

@End Channel

⁠

Disabled

channel_visitor_account

⁠

@Bot User

⁠

‘s accountvin an

@End Channel

⁠

Disabled

channel_visitor_phone

⁠

@Bot User

⁠

‘s phone in an

@End Channel

⁠

Disabled

channel_visitor_email

⁠

@Bot User

⁠

‘s email in an

@End Channel

⁠

Disabled

channel_visitor_source

the source from which the

@Bot User

⁠

came to the

@End Channel

⁠

(for example, utm tags)

Disabled

channel_visitor_auth

Authorization data of the

@Bot User

⁠

Disabled

channel_visitor_location

⁠

@Bot User

⁠

‘s location in an

@End Channel

⁠

Disabled

channel_message_id

message ID in

@Chat2Desk

⁠

Disabled

channel_message_recipient

@Bot

⁠

@Chat2Desk

⁠

is an operator; its id is written to this variable

Disabled

channel_webhook_url

Channel webhook URL from

@End Channel

⁠

settings

Disabled

channel_webhook_token

Channel webhook Token from

@End Channel

⁠

settings

Disabled

channel_reply_to

Message that was replied to in Telegram

Disabled

There are no rows in this table

⁠

When you try to overwrite them in the

@Incoming Request Slot⁠

@Slot Filling⁠

@Memory⁠

@External Request⁠

@Slot⁠

s during

@Agent⁠

@Training⁠

, the following error will appear:

⁠

Error highlighting and tooltip

⁠

Highlighting type

Validation error

Highlighting

Error text

Slot highlighting

An attempt was made to overwrite system context variables that are not allowed to be overwritten.

The problematic slot Incoming Request, Slot Filling, Memory, External Request, Synonym is highlighted.

“var” is a system variable that cannot be overwritten in following slot types: Incoming Request, Slot Filling, Memory, External Request, Synonym. What to do: remove the “var” variable from the slot.

No results from filter

⁠

7. Incorrect writing of templates in the new syntax

The rules for writing

@Template⁠

s are described in the article

Syntax⁠

. If the

@Template⁠

was entered incorrectly in the new syntax, the following error will appear during

@Agent⁠

@Training⁠

⁠

Warning text format:

Invalid template syntax:

Slot <id of problem slot>. Error “<error description>” in expression “<problem expression>”

Example:

Invalid template syntax:

Slot 8848840. Error “unexpected char '@' at 3” in expression “{{ @foo }}”

Error explanation: an error was detected in

@Slot⁠

8848840 - an extra '@' symbol with sequence number 3 in the expression {{ @foo }}.

Important: the counting of serial numbers of characters in the problem expression starts from 0.

Error highlighting and tooltip

⁠

Highlighting type

Validation error

Highlighting

Error text

Slot highlighting

Incorrect writing of templates in the new syntax

A slot with an incorrectly composed expression or control structure is highlighted

Error “<error description>” in expression “<incorrectly composed expression>” What to do: edit the expression. New syntax documentation: *documentation link*

No results from filter

⁠
