How to build a script of an Agent

Script tree navigation

Custom Slot Lighting

For ease of orientation in the

@Script Tree⁠

, you can change the color highlighting of the

@Slot⁠

s. To change the color of a

@Slot⁠

in the

@Script Tree⁠

, you must add the name of the color to the

@Slot⁠

name in the format suggested below:

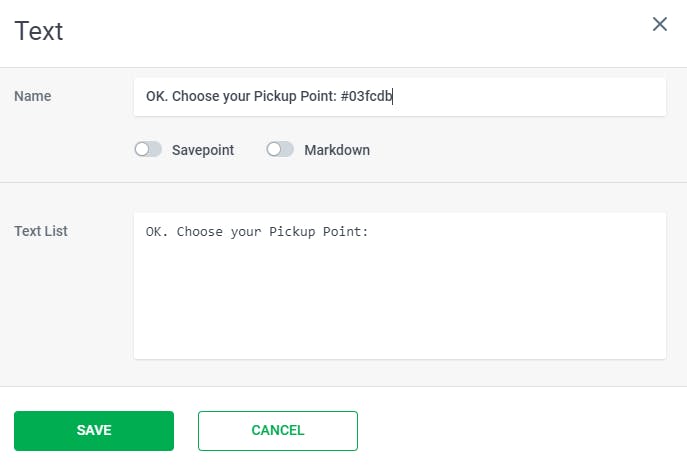

#{HEX code}

⁠

#{html-color-name}

⁠

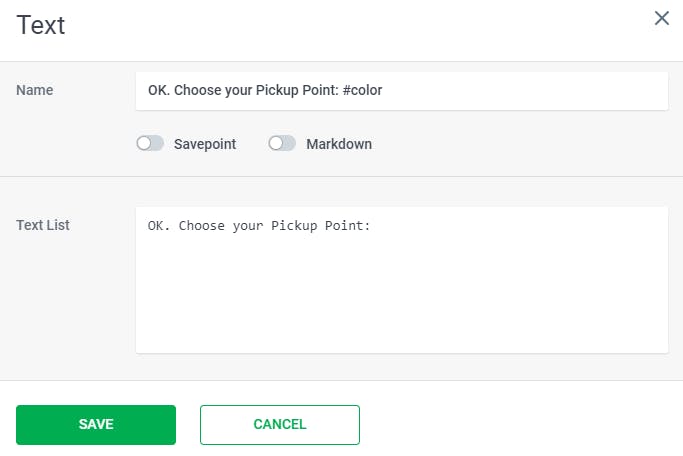

Special word #color — to set the default color (#fff94f)

⁠

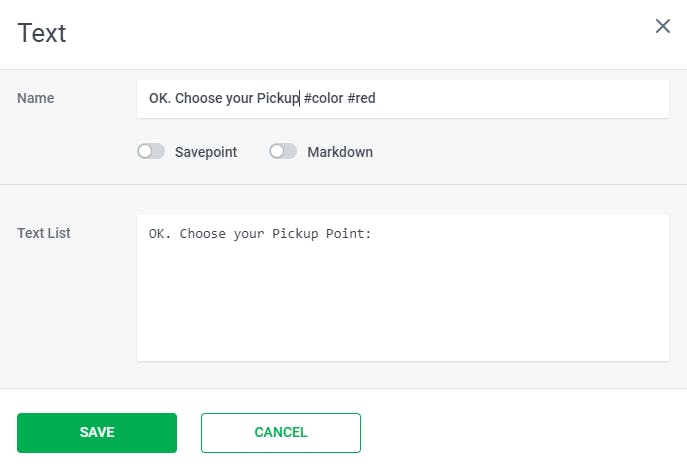

If you specify several colors in a row, the last color will be selected:

⁠

Important: the
@Slot⁠
color code added to the name becomes part of it and is displayed in the
@Script Tree⁠
.

Collapsing Script branches

For ease of working with the

@Script⁠

, you can collapse the

@Script Branch⁠

into one

@Group Slot⁠

by clicking on the minus sign in the upper right corner of the

@Slot⁠

⁠

The

@Group Slot⁠

will be highlighted in blue and the minus sign in the upper right corner of the

@Slot⁠

will change to a plus sign.

⁠

In order to expand the

@Script Branch⁠

, you need to click on the plus sign in the upper right corner of the

@Group Slot⁠

Multiple nesting of

@Slot⁠

s is possible: if a

@Script Branch⁠

that contains one or more

@Group Slot⁠

s is collapsed, when it is expanded, the collapsed

@Script Branch⁠

es it contains remain collapsed, i.e.

@Group Slot⁠

s are saved.

If the

@Slot⁠

was colored in a custom color before collapsing, the

@Group Slot⁠

will be highlighted in blue after collapsing.

⁠

The grouping of

@Slot⁠

s is saved in

@BotBuilder⁠

, thus the collapsed

@Script Branch⁠

remains collapsed when opening the

@Agent⁠

on another computer or from another

@User Account⁠

, as well as when exporting/importing the

@Agent⁠

configuration file.

Custom Slot Lighting

Collapsing Script branches
