How to create and configure Slots

Text answers | Text slot

Purpose and general information

⁠

@Text⁠

is a

@Slot⁠

that allows you to display a text message and

@Context Variable⁠

values contained in the Text List field of this

@Slot⁠

on the

@Bot User⁠

’s screen.

⁠

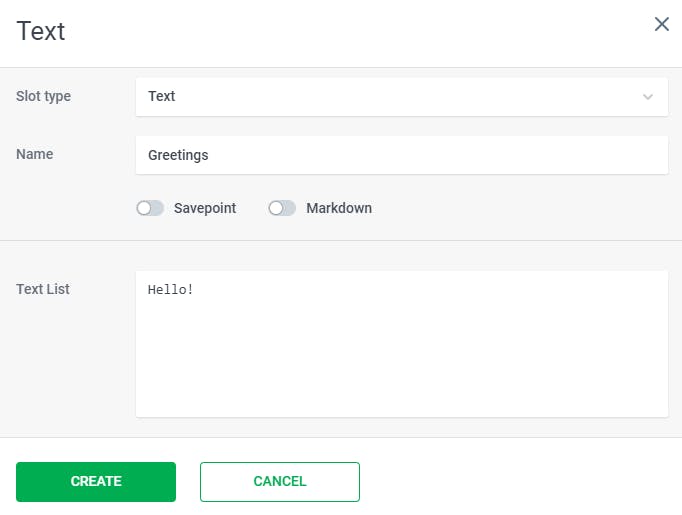

Slot creation and settings

Slot attributes

⁠

Name ー the name of the

@Slot⁠

that will be displayed in the

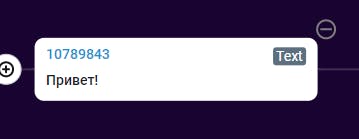

@Script Tree⁠

. The maximum length of a field value is 40 characters. If a name is not entered, the

@Platform⁠

automatically copies the first 40 characters of text from the Text List field to the Name field.

Text List ー field containing the text that will be received by the

@Bot User⁠

. The text can contain an unlimited number of characters.

Trimming spaces: by clicking the CREATE button (when creating a

@Slot⁠

) or SAVE (when editing a

@Slot⁠

), spaces and line breaks at the beginning and end of the Text List field are trimmed.

Using syntax in Slot

In the

@Text⁠

@Slot⁠

, it is possible to use

@Expression⁠

and

@Expression with Control Structure⁠

in the Text List field. More details:

Syntax⁠

Slot operation

The

@Text⁠

@Slot⁠

allows you to display a text message from the list of possible Text List messages from the

@Agent⁠

to the

@Bot User⁠

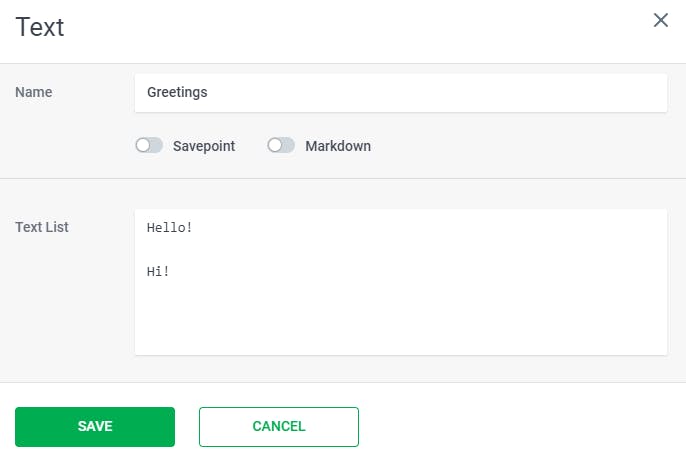

Adding multiple text message options

It is possible to add several text message options so that the

@Agent⁠

displays only one of them, chosen at random. To do this, you need to enter all answer options in the Text List field, separating them with one empty line.

⁠

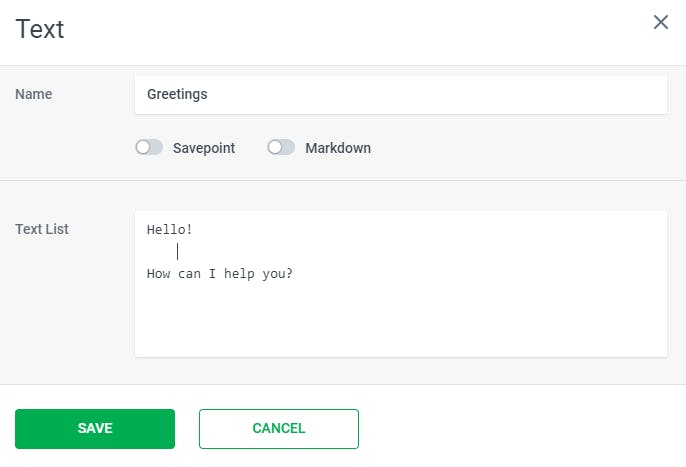

If you want the empty line to be part of the text, you need to add a space in the empty line.

⁠

Purpose and general information

Slot creation and settings

Slot attributes

Using syntax in Slot

Slot operation

Adding multiple text message options
