How to create and configure Slots

Transitions to random parts of the script | Jump slot

Purpose and general information

⁠

@Jump⁠

@Slot⁠

is a slot that allows you to move to another

@Slot⁠

. When placed in a

@Jump⁠

@Slot⁠

, the

@Conversation⁠

is transferred to another

@Slot⁠

⁠

Slot creation and settings

Slot attributes

⁠

Name ー the name of the

@Slot⁠

, which will be displayed in the

@Script Tree⁠

. The maximum length of a field value is 40 characters. If the name is not entered, the

@Platform⁠

will automatically create it using the format “To <destination Slot type> <destination Slot id>” and substitute it in the Name field.

Destination ー menu with a choice of

@Slot⁠

for transition, or the

@Savepoint⁠

option. You can find a

@Slot⁠

in the list by its

@Slot⁠

ID or by the

@Slot⁠

name.

If you select the

@Savepoint⁠

option in the Destination field, then when this

@Jump⁠

@Slot⁠

is executed, the

@Savepoint⁠

indicator will be navigated.

⁠

The table below shows whether it is possible to make transitions using

@Jump⁠

@Slot⁠

to certain types of

@Slot⁠

Slot type

Jump in the Slot is allowed

Start

Incoming Request Slot

Timer

NLU

Yes

Text

Yes

Wait For Reaction

Yes

Jump

Attachment

Yes

Memory

Yes

Language

Yes

External Request

Yes

Slot Filling

Yes

Button Menu

Yes

Transition Rule

Yes

Regular Expression Slot

Yes

Change Chat Mode

Yes

result

Yes

condition

Yes

button

Yes

fallback

Yes

intent

Yes

Synonym Slot

Yes

Notification

Notification fail

Yes

Notification no account

Yes

Notification success

Yes

Repeat

Yes

Repeat Next

Yes

Repeat End

Yes

Repeat Error

Yes

Repeat Limit

Yes

There are no rows in this table

⁠

Slot operation

When passing through a

@Jump⁠

@Slot⁠

, it moves to the

@Slot⁠

specified in the

@Savepoint⁠

field of the

@Jump⁠

@Slot⁠

. After the transition, the

@Agent⁠

will begin the corresponding

@Script Branch⁠

Important: you cannot delete a
@Script Branch⁠
with a
@Slot⁠
that is specified in the Destination field of one of the
@Jump⁠

@Slot⁠
s in the
@Script⁠

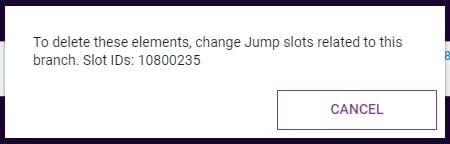

. If you try to delete such a
@Script Branch⁠
, you will receive the following warning indicating the
@Slot⁠
ID of the
@Jump⁠

@Slot⁠
that in the
@Script⁠
refers to this
@Script Branch⁠
.

If the
@Jump⁠

@Slot⁠
that refers to the
@Script Branch⁠
to be deleted is located in the same
@Script Branch⁠
, then this part of the
@Script Branch⁠
can be deleted.

⁠
