How to create and configure Slots

Checking the format of the data entered by the bot user| Regular Expression slot and Result subslot

Purpose and general information

⁠

@Regular Expression Slot⁠

is a

@Slot⁠

that allows you to check the contents of the

@client_message⁠

@Context Variable⁠

for compliance with the format specified by a regular expression, and, depending on the match, move to the appropriate

@Script Branch⁠

⁠

@Regular Expression Slot⁠

is a

@Complex Slot⁠

and cannot exist without its

@button⁠

@Subslot⁠

s, which starts its own

@Script Branch⁠

, which will be branched into after the message has been checked against the regular expression.

The

@Regular Expression Slot⁠

processes the contents of the

@Context Variable⁠

@client_message⁠

unchanged or converted to lowercase, depending on whether the Lowercase source message option is enabled in the

@Slot⁠

Slot creation and settings

Slot attributes

⁠

Name — the name of the

@Slot⁠

, which will be displayed in the Scenario Tree. The maximum length of a field value is 40 characters.

Lowercase source message option — an option that, when enabled, will convert the message in

@client_message⁠

to lowercase.

Expression ー regular expression. Article about regular expressions:

https://tproger.ru/translations/regular-expression-python/⁠

Trimming spaces: by clicking the CREATE button (when creating a

@Slot⁠

) or SAVE (when editing a

@Slot⁠

), spaces and line breaks at the beginning and end of the Expression field are trimmed.

Subslots Result

Automatic generation of subslots when creating a Regular Expression slot

When creating a

@Regular Expression Slot⁠

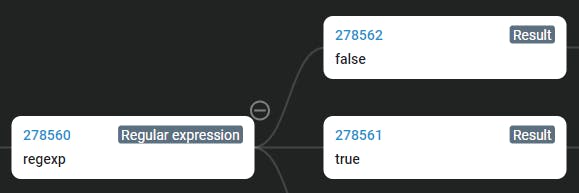

, two button

@Subslot⁠

s are automatically generated with the values “true” and “false”.

⁠

These

@Subslot⁠

s cannot be modified and can only be removed with a parent

@Regular Expression Slot⁠

The location of

@Subslot⁠

s is determined automatically;

@Subslot⁠

s cannot be moved:

The

@result⁠

@Subslot⁠

with the value “false” is always the topmost

@Subslot⁠

in this complex

@Regular Expression Slot⁠

(if the line does not match the regular expression, then there is no point in further checking whether the

@Script Branch⁠

of this subslot will be output - see Operation of the slot);

The

@result⁠

@Subslot⁠

with the value “true” is always the bottom-most

@Subslot⁠

in a given

@Regular Expression Slot⁠

Adding Result subslots

To create a new

@result⁠

@Subslot⁠

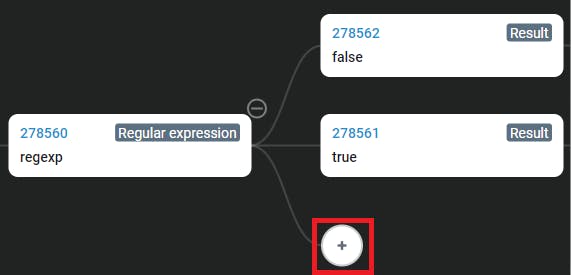

, you must click on the + button;

⁠

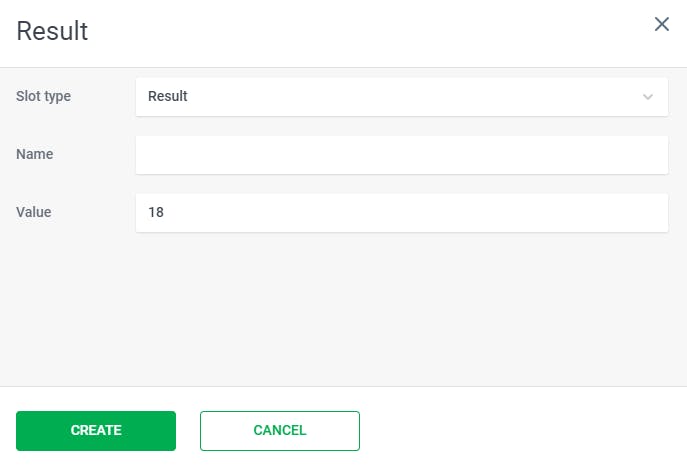

In the

@Subslot⁠

you must enter the required value. This can be any string consisting of numbers, letters and symbols.

⁠

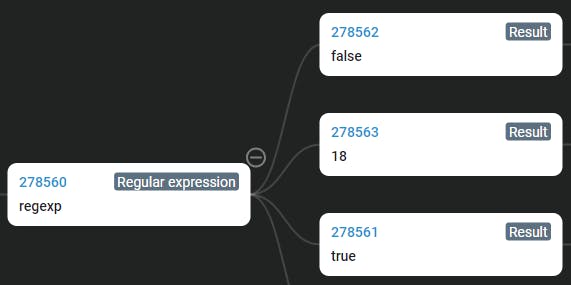

When the user creates new

@result⁠

@Subslot⁠

s containing the exact value, they will be located between the “true” and “false”

@Subslot⁠

s from top to bottom in the order in which they were created.

⁠

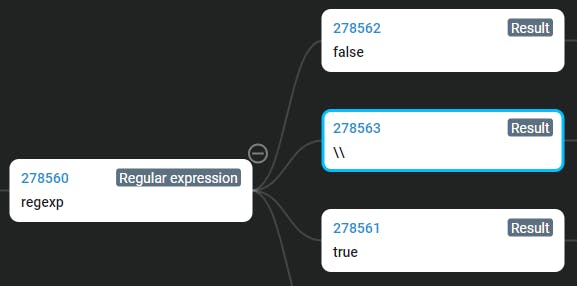

When checking for an exact value, the ' and \ characters in the

@result⁠

@Subslot⁠

must be escaped: they must be preceded by a \ character, otherwise the

@Script Validation⁠

will not be successful and the

@Agent⁠

will not be trained. Read more:

Requirements for successful Agent training⁠

⁠

Removing subslots Result

To remove a

@result⁠

@Subslot⁠

, you need to right-click on it and click the Remove Branch button, then click OK in the pop-up dialog box.

⁠

It is possible to delete only manually created

@result⁠

@Subslot⁠

Deleting automatically generated

@result⁠

@Subslot⁠

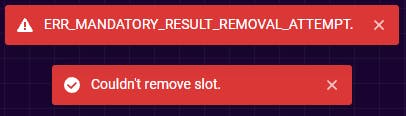

s with true and false values is not possible. When you try to do this, the following error will appear at the bottom center:

⁠

Result subslot attributes

⁠

Name — the name of the

@Slot⁠

, which will be displayed in the

@Script Tree⁠

. The maximum length of a field value is 40 characters. If no name is entered, the

@Subslot⁠

in the

@Script Tree⁠

will display the first 34 characters from the Value field.

Value — the string with which the value of the

@client_message⁠

@Context Variable⁠

will be compared.

Slot content

The

@Slot⁠

must contain a Python regular expression. Examples of regular expressions commonly used in

@Agent⁠

Only numbers:

^[\d]+$

Only Latin letters, numbers, hyphens

^([A-Za-z0-9-]+)$

E-mail address

[a-zA-Z0-9_.+-]+@[a-zA-Z0-9-]+\.[a-zA-Z0-9-.]+

URL

(https?:\/\/)?(www\.)?[-a-zA-Z0-9@:%._\+~#=]{2,256}\.[a-z]{2,6}\ b([-a-zA-Z0-9@:%_\+.~#?&\/\/=]*)

Search for one of the substrings in a string

.*(substring1|substring2).*

Important: Using masks in the
@Regular Expression Slot⁠
is not supported.

Slot operation

The

@Agent⁠

makes a copy of the contents of the

@client_message⁠

@Context Variable⁠

If the Lowercase source message option is enabled in the

@Slot⁠

, the

@client_message⁠

value is converted to lowercase. If the option is disabled, the value remains unchanged.

The resulting value is checked for compliance with the regular expression specified in the

@Regular Expression Slot⁠

. The result of the check may be:

false — the

@client_message⁠

value does not match the regular expression,

this will create a

@System Context Variables⁠

@error⁠

containing the error text.

true — the value of the

@Context Variable⁠

@client_message⁠

matches the regular expression

In this case, the

@Context Variable⁠

@parse_result⁠

will be created, where the part of

@client_message⁠

corresponding to the regular expression will be written, incl. this can be the entire contents of

@client_message⁠

;

if there are several substrings in

@client_message⁠

that match the regular expression, the first corresponding substring will be written to the

@Context Variable⁠

@parse_result⁠

;

Exit from the

@Complex Slot⁠

@Regular Expression Slot⁠

@result⁠

: the check result is sequentially compared from top to bottom with the values in the result

@Subslot⁠

s and the transition is made to the corresponding

@Script Branch⁠

, the following checks are performed:

Regular Expression Mismatch: if the test result is false, then a transition will be made to the

@Script Branch⁠

of the topmost

@Subslot⁠

result with the value “false”;

Match exact value: if the test result is true and there are user-created

@result⁠

@Subslot⁠

s to test for an exact match, then a transition will be made to the

@Script Branch⁠

of the first

@Subslot⁠

whose value matches

@client_message⁠

;

Regular expression matching: if the test result is true and there are no

@result⁠

@Subslot⁠

s to check for an exact match, or the values in them do not match the

@client_message⁠

, then the

@Script Branch⁠

of the lowest

@result⁠

@Subslot⁠

with the value “true".

⁠

Purpose and general information

Slot creation and settings

Slot attributes

Subslots Result

Automatic generation of subslots when creating a Regular Expression slot

Adding Result subslots

Removing subslots Result

Result subslot attributes

Slot content

Slot operation
