Microsoft Teams

Microsoft Teams is an enterprise platform that integrates chat, meetings, notes, and attachments into a workspace. The

@Agent⁠

can be displayed as a

@Bot⁠

, which will be available inside the company’s space.

Connection

1. Bot configuration on Microsoft Teams side

First of all, you need to configure on the Microsoft Teams side.

Bot connection

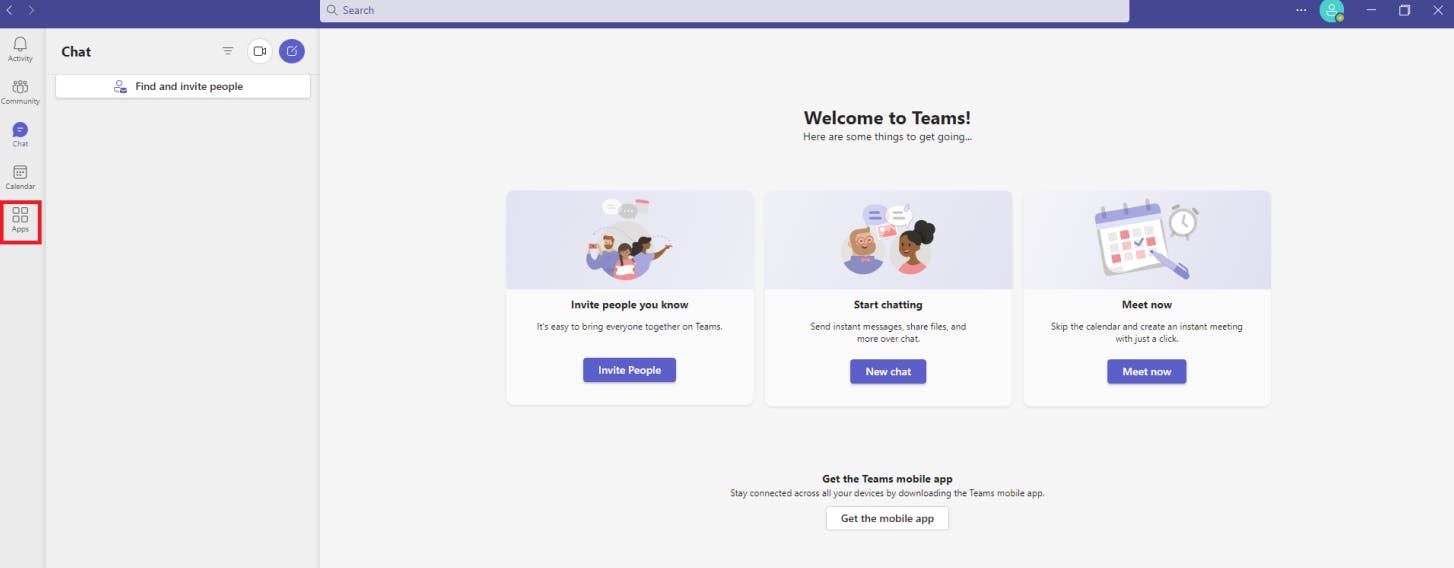

Go to the Apps section.

⁠

In the search, find the Developer Portal application and go to it.

⁠

Go to Tools → Bot Management and add a new

@Bot⁠

⁠

Enter the

@Bot⁠

's name and click Add.

⁠

In the Endpoint Address field, specify the webhook of the

@Project Channel⁠

(Chatbot webhook: URL field), which you can receive when setting up the

@Project Channel⁠

on the

@Platform⁠

⁠

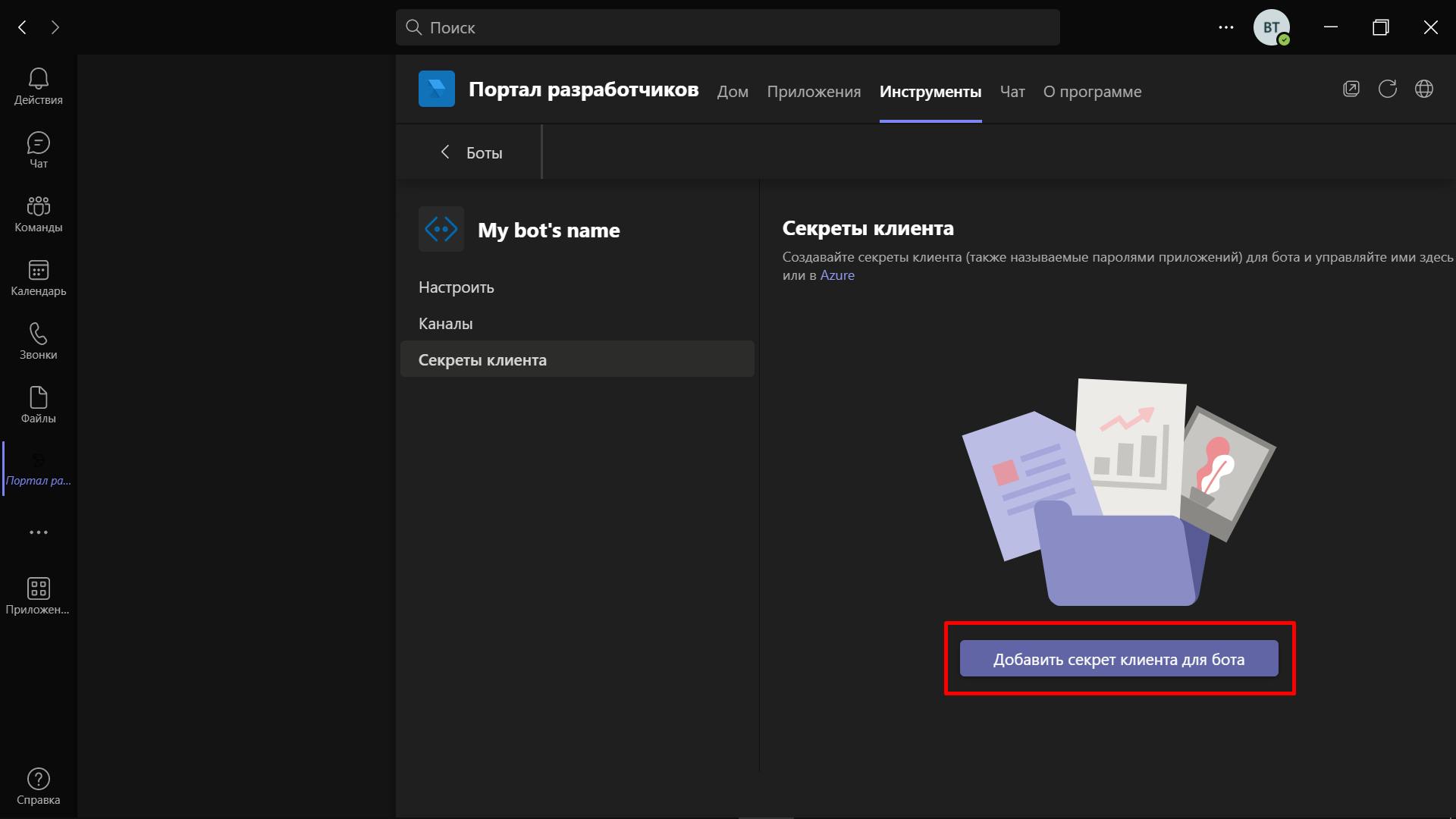

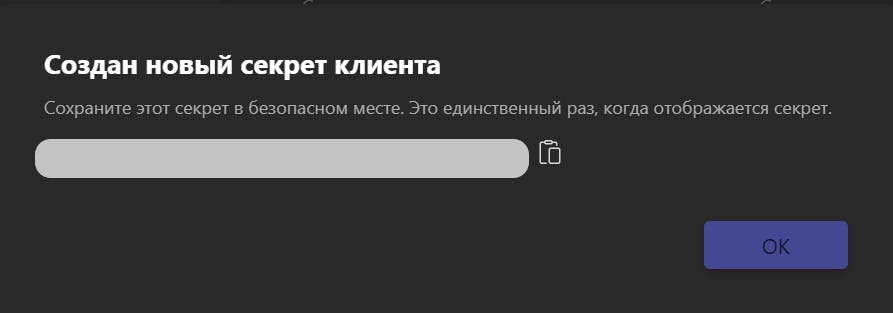

Go to the Client Secrets section, click the Add client secret for the bot button, and copy the value from the field somewhere. You will need it when setting up an

@Project Channel⁠

on the

@Platform⁠

⁠

Return to the Tools → Bot Management section and save the

@Bot⁠

ID. You will need it when setting up an

@Project Channel⁠

on the

@Platform⁠

⁠

Prepare a zip archive with the application. It should contain icons for the

@Bot⁠

and a manifest.json file with the

@Bot⁠

settings. In the manifest.json file you need to specify the ID of the created

@Bot⁠

, the name and description of the

@Bot⁠

in Teams. You can also set commands. More details are described in

Preparing an archive with an application⁠

Go to Applications → Manage your apps.

⁠

Click on Upload an app and upwnload the prepared manifest.zip archive.

⁠

After the application is approved by the administrator of your space, the application (

@Bot⁠

) will be available to space users in the Applications tab.

Preparing an archive with an application

Archive type: zip Archive contents:

manifest.json — a JSON file containing information about the

@Bot⁠

, commands and permissions.

icon.png — application icon.

Example of manifest.json:

Important: be sure to indicate your Bot ID in the id and bots.botId fields.

{

"$schema": "https://developer.microsoft.com/en-us/json-schemas/teams/v1.14/MicrosoftTeams.schema.json",

"manifestVersion": "1.14", //app manifest version for Microsoft Teams

"version": "1.0.0", //app version

"id": "93b81ba4-4572-4387-8568-37a4a76675f7", //Bot ID obtained from "Manage Bots"

"packageName": "com.teams.sample.teamsconversationbot", //application package name

//information about the app developer, including name, website URL, privacy policy, and user agreement

"developer": {

"name": "teamsConversationBot",

"websiteUrl": "https://www.microsoft.com",

"privacyUrl": "https://www.teams.com/privacy",

"termsOfUseUrl": "https://www.teams.com/termsofuser"

"icons": {

"outline": "icon-outline.png", //icon with black outline

"color": "icon-color.png" //color icon

"name": {

"short": "TeamsConversationBot", //short name of the bot

"full": "TeamsConversationBot" //bot's full name

"description": {

"short": "TeamsConversationBot", //brief description of the bot

"full": "TeamsConversationBot" //full description of the bot

"accentColor": "#FFFFFF", //main application color

"bots": [

{

"botId": "93b81ba4-4572-4387-8568-37a4a76675f7", //Bot ID obtained from "Manage Bots"

"scopes": [

"personal",

"groupchat",

"team"

"isNotificationOnly": false, //indicates whether the bot is notification only or can send messages

"supportsCalling": false, //indicates whether the bot supports calls

"supportsVideo": false, //indicates whether the bot supports video

"supportsFiles": false, //indicates whether the bot supports files

//список доступных команд

"commandLists": [

{

"scopes": [

"personal",

"groupchat",

"team"

"commands": [

{

"title": "MentionMe",

"description": "Sends message with @mention of the sender"

{

"title": "Show Welcome",

"description": "Shows the welcome card"

{

"title": "MessageAllMembers",

"description": "Send 1 to 1 message to all members of the current conversation"

}

]

}

]

}

//permissions requested by the application

"permissions": [

"identity",

"messageTeamMembers"

"validDomains": []

}

2. Agent channel configuration in the Platform

You need to create and configure an

@Project Channel⁠

with the “Microsoft Teams” connector.

Click on the agent settings button.

⁠

Click the Add channel button.

⁠

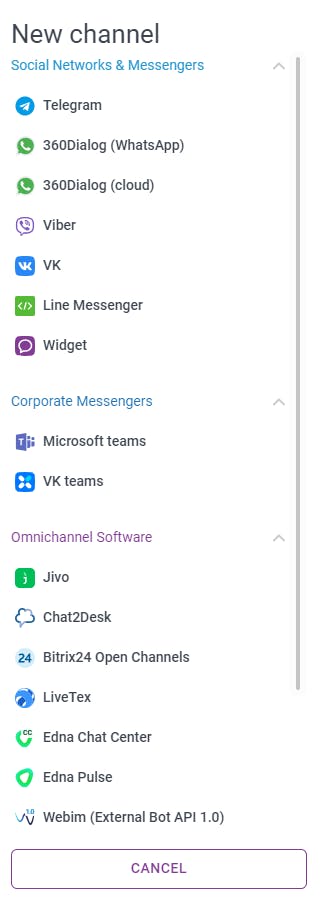

The

@End Channel⁠

selection panel will open.

⁠

Select

@Microsoft Teams⁠

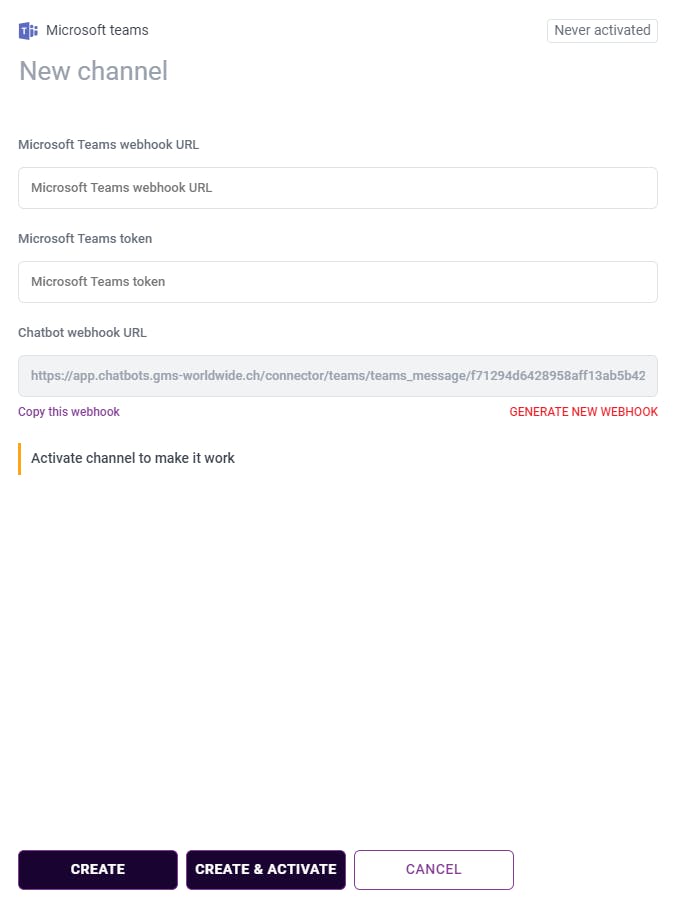

The

@Project Channel⁠

creation panel will open.

⁠

Optionally, enter a title for this

@Project Channel⁠

in the Name field with the placeholder New channel.

⁠

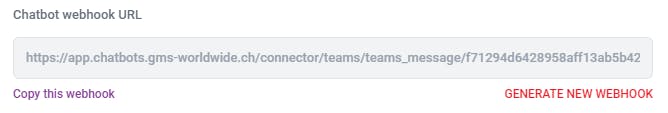

Specify the webhook of the

@Project Channel⁠

(Chatbot webhook URL field) as the Endpoint Address in the bot settings in Microsoft Teams. You can copy the entire URL by clicking the Copy this webhook button.

⁠

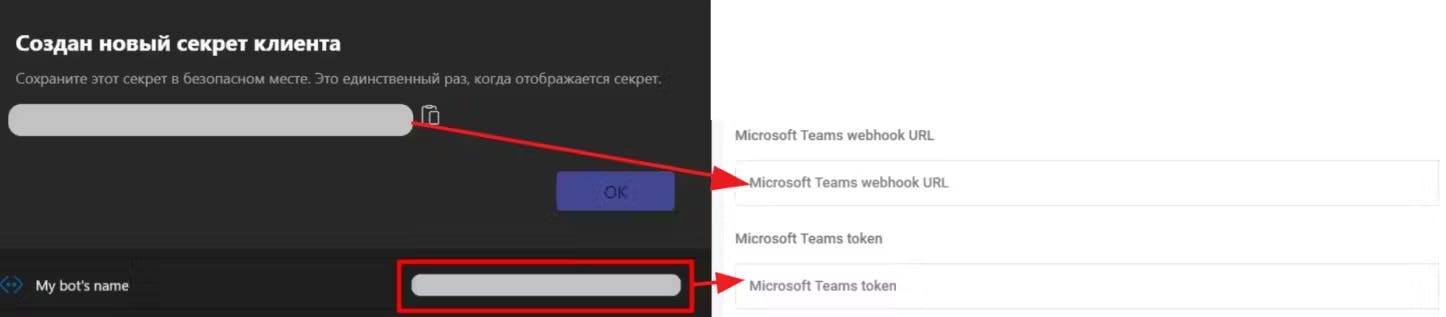

Set the

@Bot⁠

ID received in the Microsoft Teams

@Bot⁠

settings in the Microsoft Teams Token field in the

@Agent⁠

settings window.

Specify the client secret for the

@Bot⁠

in the Microsoft Teams webhook URL field.

⁠

To save the

@Project Channel⁠

without activating it, click the CREATE button.

⁠

To save and activate the

@Project Channel⁠

, click the CREATE & ACTIVATE button.

⁠

The

@Project Channel⁠

will be saved and activated if:

The

@Agent⁠

is trained;

The token in the Microsoft Teams Token field is unique (there are no active channels of the same type with the same token);

The channel address is accessible;

The channel webhook is registered succesfully.

The

@Project Channel⁠

will be saved but not activated if one or more conditions are not met.

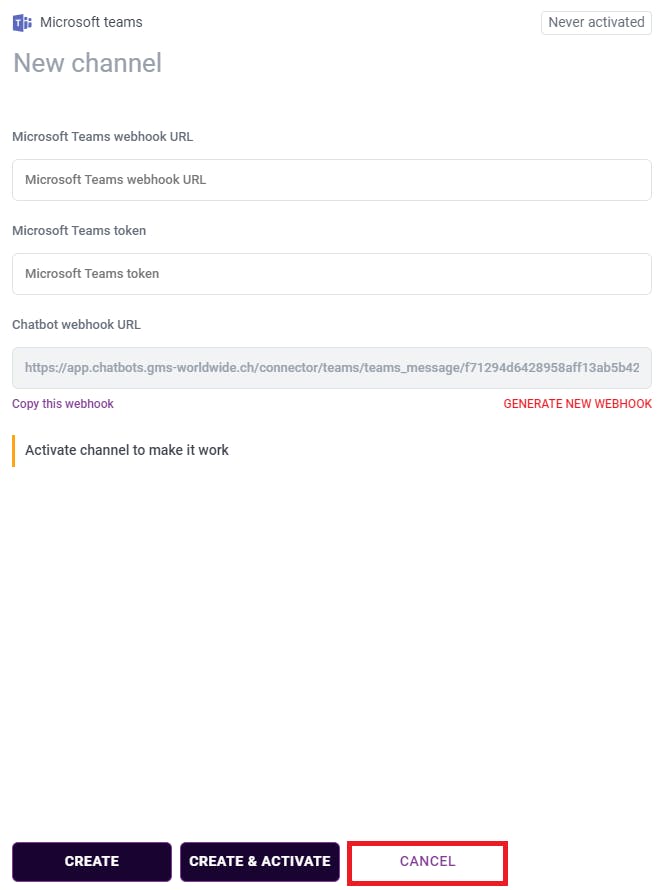

To cancel

@Project Channel⁠

creation, click the CANCEL button.

⁠

Editing and Deleting Agent Channel

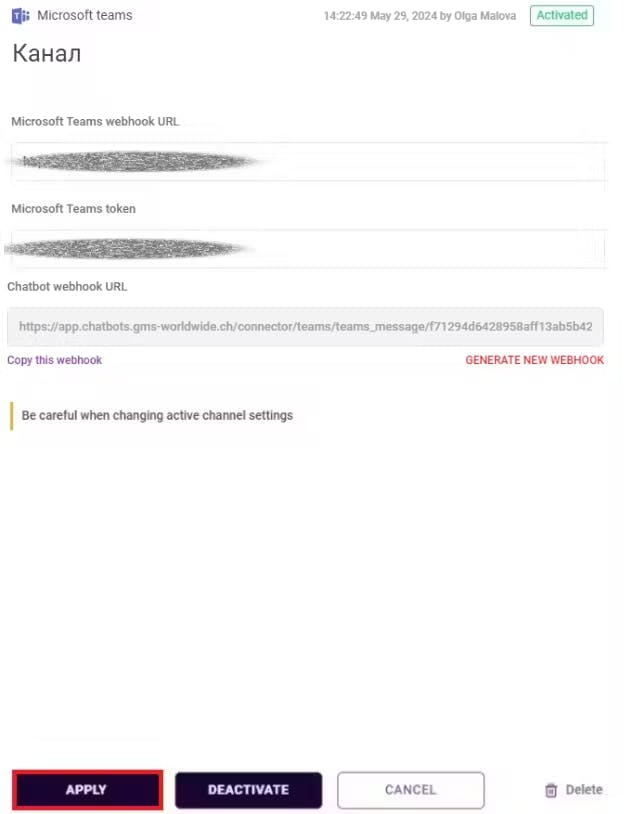

To edit an

@Project Channel⁠

, click on its icon on the

@Agent⁠

card.

⁠

To edit any field, click the field and enter a new value.

To apply changes to an activated

@Project Channel⁠

, click the APPLY button.

⁠

Changes will be applied if:

The

@Agent⁠

is trained;

The token in the Microsoft Teams Tokenfield is unique (there are no active channels of the same type with the same token);

The channel address is accessible;

The channel webhook is registered succesfully.

Changes will not be applied if one or more conditions are not met.

To deactivate the

@Project Channel⁠

, click the DEACTIVATE button.

⁠

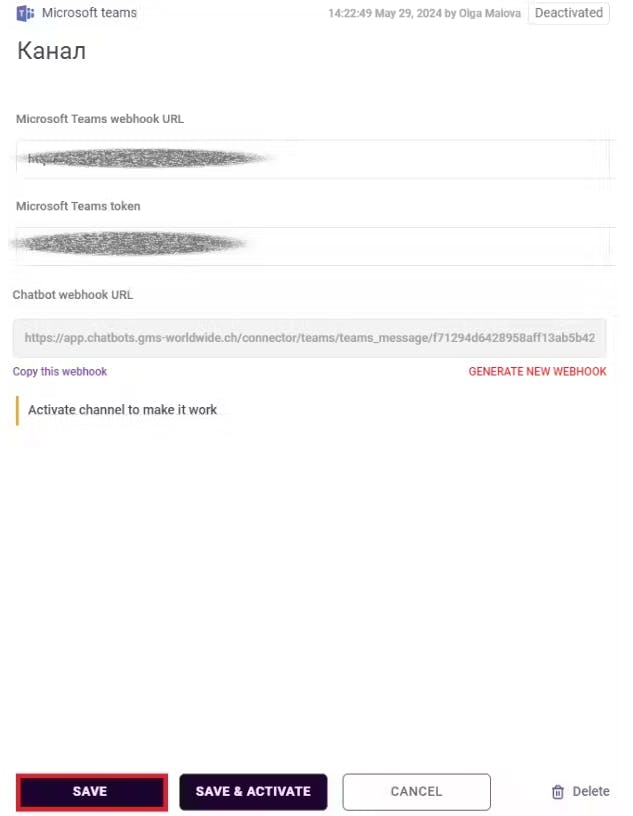

To apply changes to a non-activated

@Project Channel⁠

, click the SAVE button.

⁠

To apply changes and activate the

@Project Channel⁠

, click the SAVE & ACTIVATE button.

⁠

Changes will be applied and the

@Project Channel⁠

will be activated if:

The

@Agent⁠

is trained;

The token in the Microsoft Teams Token field is unique (there are no active channels of the same type with the same token);

The channel address is accessible;

The channel webhook can be registered.

Changes will be applied but the

@Project Channel⁠

will not be activated if one or more conditions are not met.

To cancel making changes, click the CANCEL button.

⁠

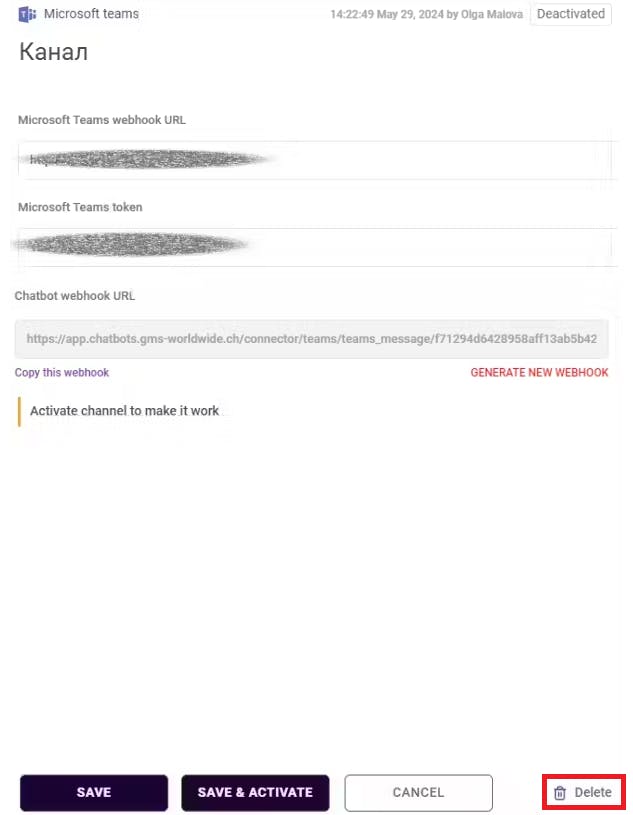

To delete the

@Project Channel⁠

, click the DELETE button.

⁠

Communication

Mapping of Channel variables from Microsoft Teams

Mapping  of Channel variables from Microsoft Teams

Channel variable

End channel

Variable in the body of an incoming request from a channel

Peculiarities

channel_visitor_id

Microsoft Teams

from.id

channel_conversation_id

Microsoft Teams

conversation.id

channel_visitor_firstname

Microsoft Teams

channel_visitor_lastname

Microsoft Teams

channel_visitor_account

Microsoft Teams

from.name

channel_visitor_phone

Microsoft Teams

channel_visitor_email

Microsoft Teams

channel_visitor_source

Microsoft Teams

channel_visitor_auth

Microsoft Teams

channel_visitor_location

Microsoft Teams

channel_message_id

Microsoft Teams

channel_message_recipient

Microsoft Teams

channel_webhook_url

Microsoft Teams

serviceUrl

channel_reply_to

Microsoft Teams

No results from filter

⁠

Communication in Microsoft Teams

Communication in Microsoft Teams

Functionality

Channel

Availability

Description

channel_chat_id

Microsoft Teams

Yes

Format: channel_visitor_id|teams

Messages will reach the Bot User if the Agent writes first in an existing chat

Microsoft Teams

Yes

Buttons

Microsoft Teams

Yes

Transfer to operator

Microsoft Teams

Microsoft Teams does not have such functionality

Transferring files as files from the Agent

Microsoft Teams

Yes

Transferring files as links from the Agent

Microsoft Teams

Yes

Receiving a file from the Bot User into a script

Microsoft Teams

Yes

Receiving geolocation from an Bot User in a Script

Microsoft Teams

Delivery of messages over 1000 characters from Agent to Bot User

Microsoft Teams

Yes

Get a link to the lead source

Microsoft Teams

Markdown usage

Microsoft Teams

Yes

Mailing with Notification

Microsoft Teams

No results from filter

⁠
