Triggering chatbot with a timer | Timer slot

Purpose and general information

The

@Timer⁠

@Slot⁠

is designed to start countdown after specific conditions are satisfied (e.g dialog is closed, a variable is changed etc) and run the

@Agent⁠

when the countdown is completed.

⁠

For example, using the

@Timer⁠

@Slot⁠

you can:

“wake up” the

@Agent⁠

2 hours after

@Closing Dialog⁠

, if the

@Bot User⁠

has not completed placing the order in the

@Chat⁠

, to remind him to complete the order

force the

@Dialog⁠

to be transferred to the operator if 10 minutes have passed since the beginning of the

@Dialog⁠

and the

@Bot User⁠

’s question has not been resolved

“remind” the

@Bot User⁠

to return to the

@Dialog⁠

if the

@Agent⁠

does not receive an answer to the question within 5 minutes

Make requests about the delivery status to an external system once a day and notify the

@Bot User⁠

if the status has changed

Slot creation and settings

@Timer⁠

@Slot⁠

can be created only after the

@Start⁠

@Slot⁠

if there is a regular branch for processing messages incoming through the

@Project Channel⁠

⁠

Several

@Timer⁠

@Slot⁠

s are allowed in a

@Script⁠

, and their parameters can be the same.

Slot attributes

⁠

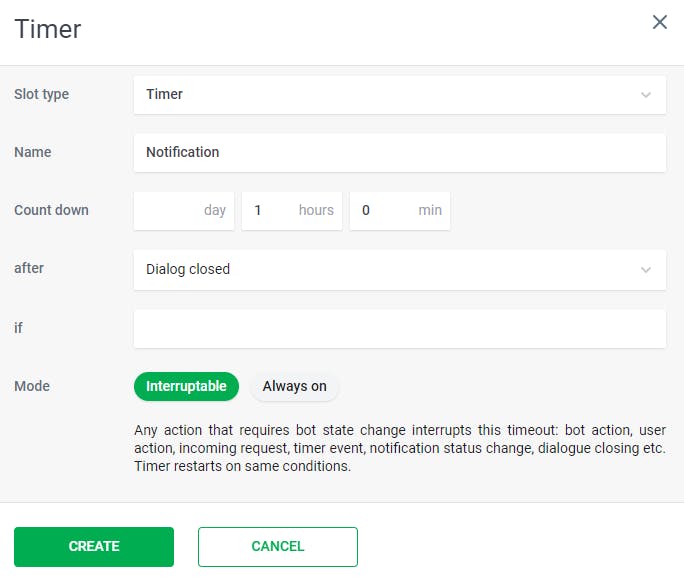

The parameters inthe picture should be read as follows: set a timer in Interruptable mode for 1 hour after closing the dialog

Slot Name — the name of the

@Slot⁠

that will be displayed in the

@Script Tree⁠

. The maximum length of a field value is 40 characters.

Count down — countdown time, which will be set when the timer is started, after the end of the countdown of this time the timer will be triggered. The value cannot be empty, the minimum value is 1 minute, the increment is 1 minute. When creating a

@Slot⁠

, the time value is preset to 1 hour.

If you try to enter a value equal to or greater than 60 in the min field, the value will be automatically converted to hours and transferred to the hours field. When the hours field is filled in, the converted value will be added to the value previously specified in the hours field.

If you try to enter a value equal to or greater than 24 in the hours field, the value will be automatically converted to days and moved to the day field. When the day field is filled in, the converted value will be added to the value previously specified in the day field.

after — an event that starts checking the if condition for starting the timer.

If — condition under which the timer will be started when the after event occurs. The expression in this field must produce the logical result True or False (more:

Syntax⁠

Note: without an additional condition, there is a risk of endlessly restarting the timer, for example:
@Closing Dialog⁠
starts the timer for 5 minutes → after 5 minutes the timer goes off → The
@Agent⁠
writes something to the
@Bot User⁠
→ this message starts a new
@Dialog⁠
→ this
@Dialog⁠
will be closed again, for example, due to a timeout →
@Closing Dialog⁠
starts the timer again for 5 minutes.... and so on in a circle. You can enter a
@Context Variable⁠
as a sign of whether the
@Agent⁠
reminded you of itself; if it is filled, then the timer will not start.

Mode — timer operating mode, it determines how the timer can be interrupted:

Interruptable: a mode in which any change in the

@Communication State⁠

stops the timer, for example: The

@Bot User⁠

wrote something, an

@Incoming Request⁠

arrived, the

@Agent⁠

moved forward in the

@Script⁠

, another timer of this

@Agent⁠

worked.

Always on: a mode in which changing the

@Communication State⁠

does not stop the timer; it can only be stopped by

@Training⁠

the

@Agent⁠

by the user or starting a new timer from the same

@Slot⁠

(for example, when the conditions are met again).

Using Syntax in Timer Slot

In the

@Timer⁠

@Slot⁠

, it is possible to use

@Expression⁠

in the If field. More details:

Syntax⁠

Slot operation

Monitoring

The

@Platform⁠

monitors

@Chat⁠

s for trigger events for each

@Timer⁠

@Slot⁠

in their

@Script⁠

Timer triggers

Timer triggers

Trigger

Description

Peculiarities

Examples

Dialog closed

⁠

@Closing Dialog by Script

⁠

starts a timer if the

@Additional Timer Start Condition

⁠

is met

Remind the interlocutor that he did not finish the dialogue, placing an order, or abandoned the cart

Send data to an external system after the end of the dialogue

Periodically “go” to an external system for the status of a task/order and notify the interlocutor when it changes

Send a request to evaluate the quality of service

Dialog started

⁠

@Opening Dialog

⁠

starts a timer if the

@Additional Timer Start Condition

⁠

is met

force an operator to connect if the dialogue lasts a long time, but the issue is not resolved

Variable changed

Changing a variable to a new (different) value starts a timer if the

@Additional Timer Start Condition

⁠

is met

The variable is specified by the user in a new field that appears when this item is selected. Entering a variable is required, the variable name is indicated without quotes

an hour after receiving key data (for example, phone number), send it to an external system, regardless of the status of the dialogue

Bot started waiting

The

@Agent

⁠

's transition to the state of waiting for input from the

@Bot User

⁠

@Wait For Reaction

⁠

@Slot Filling

⁠

@Button Menu

⁠

starts a timer if the

@Additional Timer Start Condition

⁠

is met

“ping” the interlocutor if he is distracted from the dialogue

invite the operator to dialogue if the interlocutor does not answer

There are no rows in this table

⁠

The following actions are performed for each

@Timer⁠

@Slot⁠

in the

@Agent⁠

Starting a timer

If the

@Timer Start Trigger⁠

fires, the

@Platform⁠

checks the

@Additional Timer Start Condition⁠

When the

@Additional Timer Start Condition⁠

is met, the timer starts and a scheduled task is created in the system. If the

@Additional Timer Start Condition⁠

is not met, nothing happens.

Starting a timer itself does not affect

@Conversation⁠

and does not change the

@Communication State⁠

, it simply creates a scheduled task in the system.

Starting a timer interrupts the previous, not yet triggered timer, started from the same

@Timer⁠

@Slot⁠

, if there is such a

@Set Timer⁠

Note: technically, the same original
@Set Timer⁠
remains in the database, but a new trigger time is set in it.

Timer activation

The

@Platform⁠

checks which

@Timer⁠

s have finished counting down (Count down field) and activates their

@Timer⁠

@Slot⁠

s in the corresponding

@Chat⁠

s — the

@Timer⁠

is triggered, and the corresponding

@Script Branch⁠

es are launched in the

@Chat⁠

Verification period is 1 minute.

This means that there may be a delay of up to 1 minute (59 seconds) between the scheduled and actual operation of the timer.

If a

@Set Timer⁠

is counting down before the end of the next minute, the

@Timer⁠

will still not fire because the

@Platform⁠

has not yet checked and does not know that the countdown has ended. But as soon as this minute ends, the

@Platform⁠

will check that the timer will work.

Note: as practice shows, most often the delay occurs in the range from 40 to 59 seconds, this should be taken into account when setting the countdown value.

At the end of each minute, all

@Timer⁠

s whose countdown has ended within a minute are triggered immediately one after another. It means that they could be launched “at the same time” with an interval of 1-59 seconds, but will work “simultaneously”, since the

@Platform⁠

learned about this as part of one check (see

Multiple Timer slots in one Agent⁠

)

When the

@Timer⁠

fires, the

@Communication State⁠

changes:

The current

@Script⁠

in the

@Active Dialog⁠

will be “interrupted”, because the

@Agent⁠

will immediately “jump” to the

@Script Branch⁠

after the

@Timer⁠

@Slot⁠

and continue

@Conversation⁠

from the next

@Slot⁠

after the

@Timer⁠

@Slot⁠

If at this moment there is no

@Active Dialog⁠

in this

@Chat⁠

, then the

@Script⁠

in the

@Chat⁠

will start, but the

@Dialog⁠

will be opened at the first incoming or outgoing message.

Deleting (stopping) a timer

@Set Timer⁠

can be stopped (reset, deleted) by certain events, based on the mode in which it was started.

Any

@Set Timer⁠

can be reset by starting a new

@Timer⁠

from the same

@Timer⁠

@Slot⁠

Note: technically, the same original
@Set Timer⁠
remains in the database, but a new trigger time is set in it.

Retraining an

@Agent⁠

or deleting/deactivating an

@Project Channel⁠

deletes all

@Set Timer⁠

s in resettled

@Chat⁠

Timer Operation Modes

Timer Operation Modes

Mode

Description

Interruption by agent retraining

Interruption by Communication State Change

Interrupt by starting a new timer from the same slot

Interruptable

a mode in which a change in the

@Communication State

⁠

stops the timer, for example: the

@Bot User

⁠

wrote something, an

@Incoming Request

⁠

arrived, the

@Agent

⁠

moved according to the scenario, another timer of this

@Agent

⁠

worked.

Always оn

a mode in which a change in the

@Communication State

⁠

does not stop the timer, it can only be stopped by starting a new timer from the same slot (for example, when the conditions are met again)

There are no rows in this table

⁠

Multiple Timer slots in one Agent

Several

@Timer⁠

@Slot⁠

s are allowed in one

@Agent⁠

, and their

@Timer Start Trigger⁠

Timer Operation Modes⁠

, countdown times and additional conditions may partially or completely coincide.

Each

@Timer⁠

@Slot⁠

in the

@Script⁠

starts its own separate timer.

Running multiple timers in one agent

Each

@Timer⁠

is started from its

@Timer⁠

@Slot⁠

independently of the others according to the firing order — see

Starting a Timer⁠

Several

@Timer⁠

s, including “identical” ones, can be launched simultaneously.

Firing multiple timers in one agent

Since

@Timer⁠

s are checked in the

@Platform⁠

once a minute, timers running in one

@Agent⁠

, which should work less than a minute apart, can work “simultaneously” and in a random order:

During the next minute-by-minute check, the

@Platform⁠

will detect all untriggered (started)

@Agent⁠

@Timer⁠

s that have expired and send them “for execution”

After which they will be triggered in random order.

It means that if 2

@Timer⁠

s were started for one hour, then it is unknown which of them will work first in an hour.

At the same time, if among the

@Timer⁠

s “sent for execution” there are Interruptable

@Timer⁠

s, then they will no longer be interrupted by the operation of the first timer in the queue.

Purpose and general information

Slot creation and settings

Slot attributes

Using Syntax in Timer Slot

Deleting (stopping) a timer

Timer Operation Modes

Multiple Timer slots in one Agent

Running multiple timers in one agent

Firing multiple timers in one agent
